DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [09/2019 - ]: Wiring Diagram

FOR RH SIDE TURN SIGNAL LIGHT

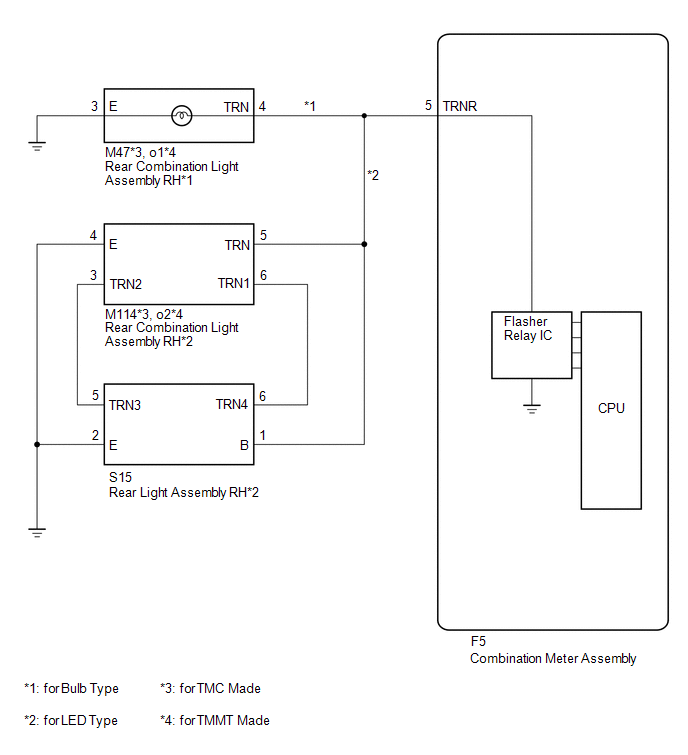

Fig 1: Open In Turn Signal Circuit Diagram - For RH Side Turn Signal Light (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

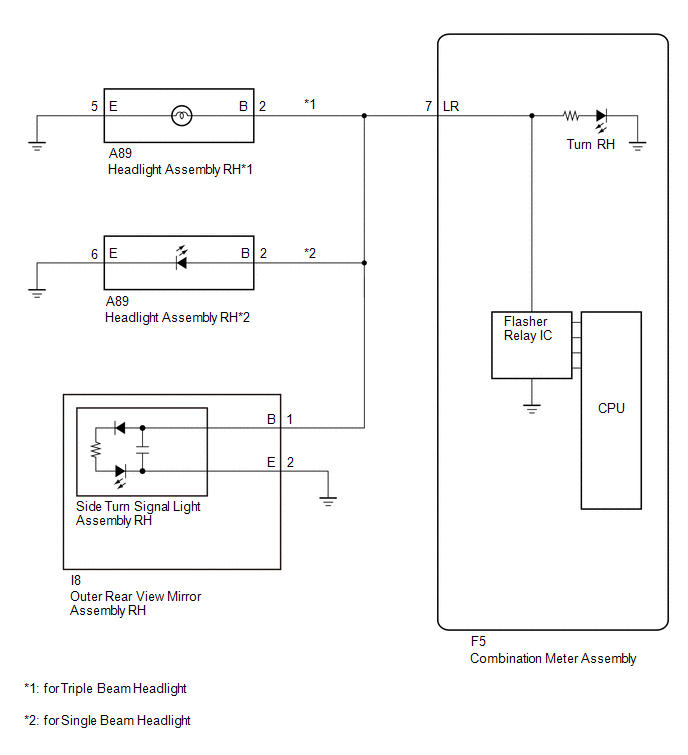

Fig 2: Open In Turn Signal Circuit Diagram - For RH Side Turn Signal Light (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FOR LH SIDE TURN SIGNAL LIGHT

Fig 3: Open In Turn Signal Circuit Diagram - For LH Side Turn Signal Light (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Open In Turn Signal Circuit Diagram - For LH Side Turn Signal Light (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
