DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [02/2017 - 10/2017]: Wiring Diagram

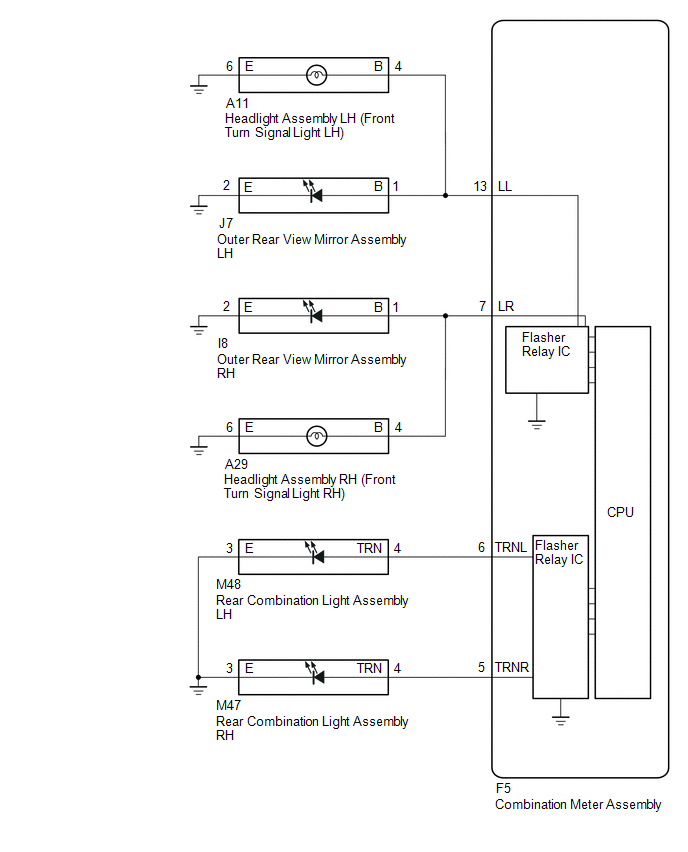

Fig 1: Open In Turn Signal Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
