DTC B1500: Fuel Sender Open Detected [10/2017 - 09/2019]: Wiring Diagram

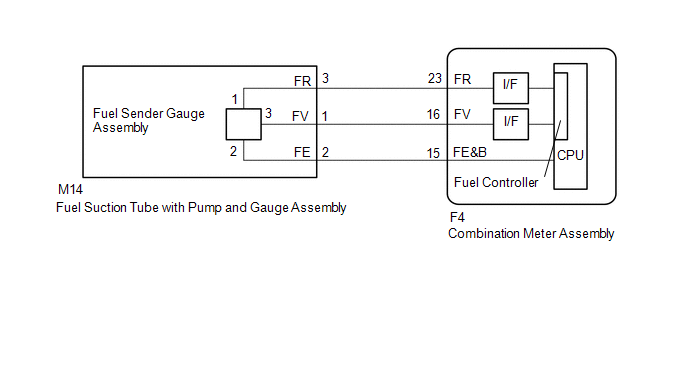

Fig 1: Fuel Sender Open Detected Circuit Diagram

GTY774194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
