Installation [04/2018 - 08/2019]: Procedure

  1. INSTALL SIDE PANEL EMBLEM (for HV Model)
    1. Clean the front door panel surface.
      1. Using a heat light, heat the front door panel surface.
      2. Remove any remaining double-sided tape from the front door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the front door panel and a new side panel emblem.
    3. Remove the release paper from the side panel emblem.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the side panel emblem as shown in the illustration.

      for LH Side:

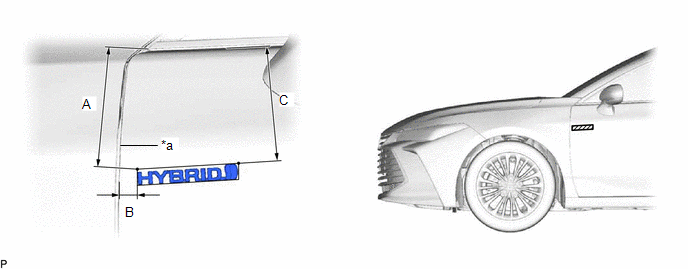

      GTY889487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Profile of Front Door Panel - -

      Standard Measurement

      Area Measurement Area Measurement
      A 174.6 mm (6.87 in.) B 27.3 mm (1.07 in.)
      C 174.7 mm (6.88 in.) - -
      NOTE:

      Press the side panel emblem firmly to install it.

      for RH Side:

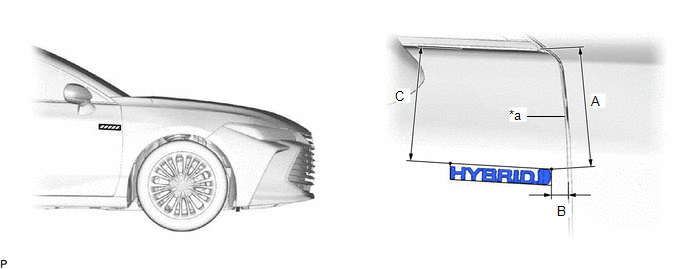

      GTY894909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Profile of Front Door Panel - -

      Standard Measurement

      Area Measurement Area Measurement
      A 174.7 mm (6.88 in.) B 27.2 mm (1.07 in.)
      C 173.4 mm (6.83 in.) - -
      NOTE:

      Press the side panel emblem firmly to install it.

  2. INSTALL NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE (for HV Model)
    1. Clean the luggage compartment door panel surface.
      1. Using a heat light, heat the luggage compartment door panel surface.
      2. Remove any remaining double-sided tape from the luggage compartment door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the luggage compartment door panel and a new No. 1 luggage compartment door name plate.
    3. Remove the release paper from the No. 1 luggage compartment door name plate.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the No. 1 luggage compartment door name plate as shown in the illustration.

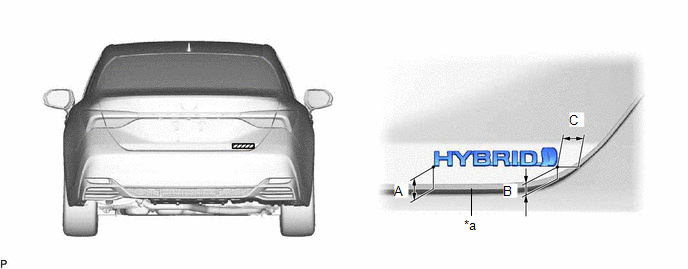

      GTY885758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Profile of Luggage Compartment Door Panel - -

      Standard Measurement

      Area Measurement Area Measurement
      A 19.9 mm (0.784 in.) B 6.8 mm (0.268 in.)
      C 11.7 mm (0.461 in.) - -
      NOTE:

      Press the No. 1 luggage compartment door name plate firmly to install it.

  3. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE
    1. Clean the luggage compartment door panel surface.
      1. Using a heat light, heat the luggage compartment door panel surface.
      2. Remove any remaining double-sided tape from the luggage compartment door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the luggage compartment door panel and a new No. 3 luggage compartment door plate.
    3. Remove the release paper from the No. 3 luggage compartment door plate.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the No. 3 luggage compartment door plate as shown in the illustration.

      for XLE Plate:

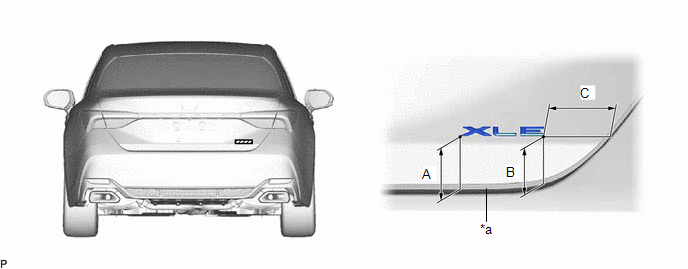

      GTY865980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Profile of Luggage Compartment Door Panel - -

      Standard Measurement

      Area Measurement Area Measurement
      A 51.1 mm (2.01 in.) B 46.6 mm (1.83 in.)
      C 71.7 mm (2.82 in.) - -
      NOTE:

      Press the No. 3 luggage compartment door plate firmly to install it.

      for LIMITED Plate:

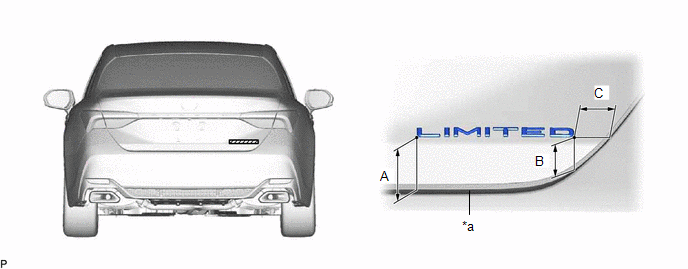

      GTY871147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Profile of Luggage Compartment Door Panel - -

      Standard Measurement

      Area Measurement Area Measurement
      A 51.2 mm (2.02 in.) B 27.5 mm (1.08 in.)
      C 30.5 mm (1.20 in.) - -
      NOTE:

      Press the No. 3 luggage compartment door plate firmly to install it.

      for XSE Plate:

      GTY876003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Profile of Luggage Compartment Door Panel - -

      Standard Measurement

      Area Measurement Area Measurement
      A 51.1 mm (2.01 in.) B 46.6 mm (1.83 in.)
      C 71.7 mm (2.82 in.) - -
      NOTE:

      Press the No. 3 luggage compartment door plate firmly to install it.

      for TOURING Plate:

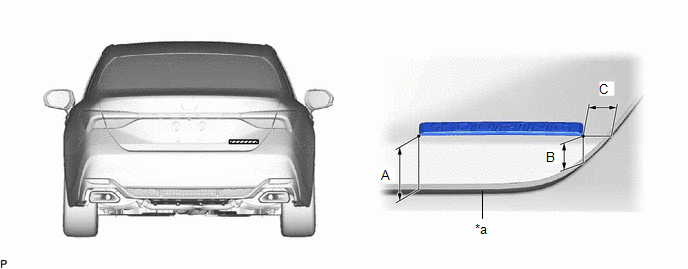

      GTY935177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Profile of Luggage Compartment Door Panel - -

      Standard Measurement

      Area Measurement Area Measurement
      A 50.9 mm (2.00 in.) B 23.9 mm (0.941 in.)
      C 25.9 mm (1.02 in.) - -
      NOTE:

      Press the No. 3 luggage compartment door plate firmly to install it.

  4. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Clean the luggage compartment door panel surface.
      1. Using a heat light, heat the luggage compartment door panel surface.
      2. Remove any remaining double-sided tape from the luggage compartment door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the luggage compartment door panel and a new No. 2 luggage compartment door name plate.
    3. Remove the release paper from the No. 2 luggage compartment door name plate.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the No. 2 luggage compartment door name plate as shown in the illustration.

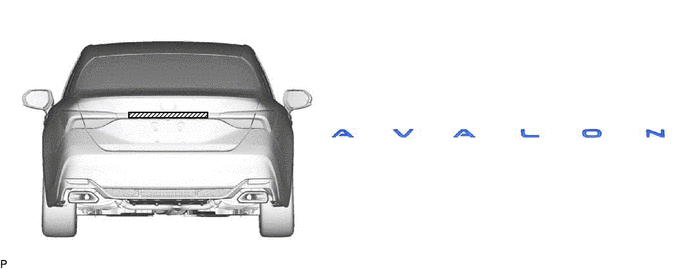

      GTY868273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Press the No. 2 luggage compartment door name plate firmly to install it.

  5. INSTALL SYMBOL EMBLEM
    1. Clean the luggage compartment door panel surface.
      1. Using a heat light, heat the luggage compartment door panel surface.
      2. Remove any remaining double-sided tape from the luggage compartment door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the luggage compartment door panel and a new symbol emblem.
    3. Remove the release paper from the symbol emblem.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Engage the 2 pins and install the symbol emblem as shown in the illustration.

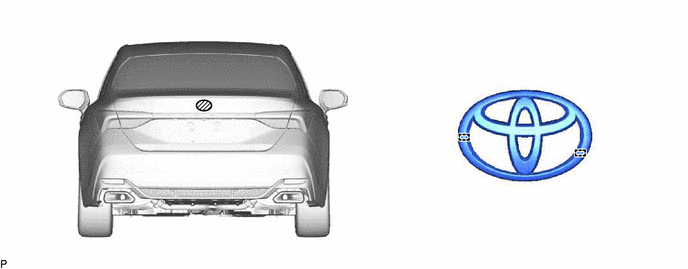

      GTY868271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Press the symbol emblem firmly to install it.
