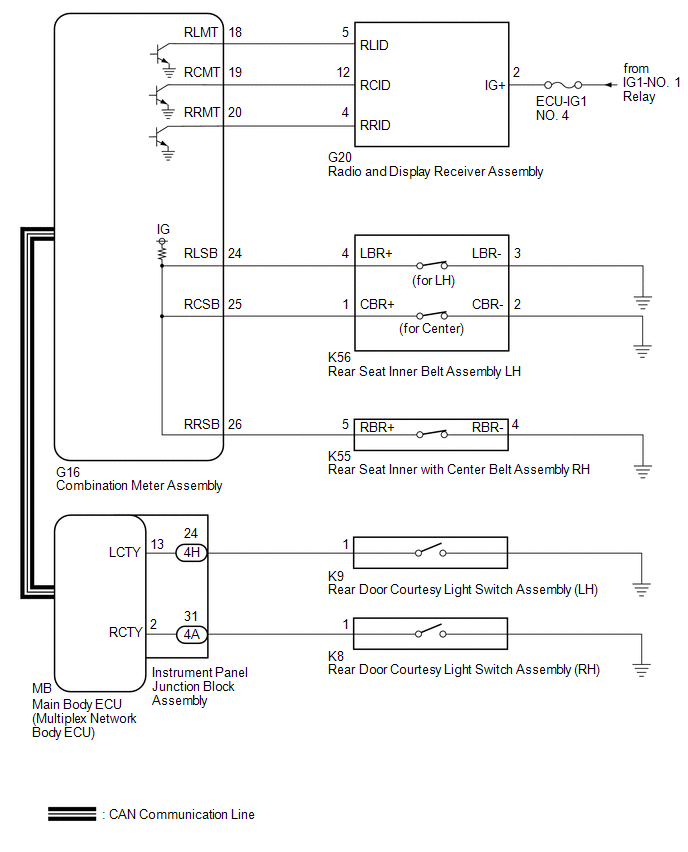

Rear Seat Belt Warning Light Malfunction [04/2018 - ]: Wiring Diagram

GTY915233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
