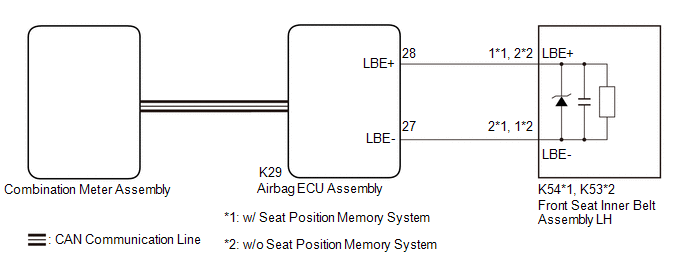

Driver Side Seat Belt Warning Light does not Operate [04/2018 - ]: Wiring Diagram

GTY914626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
