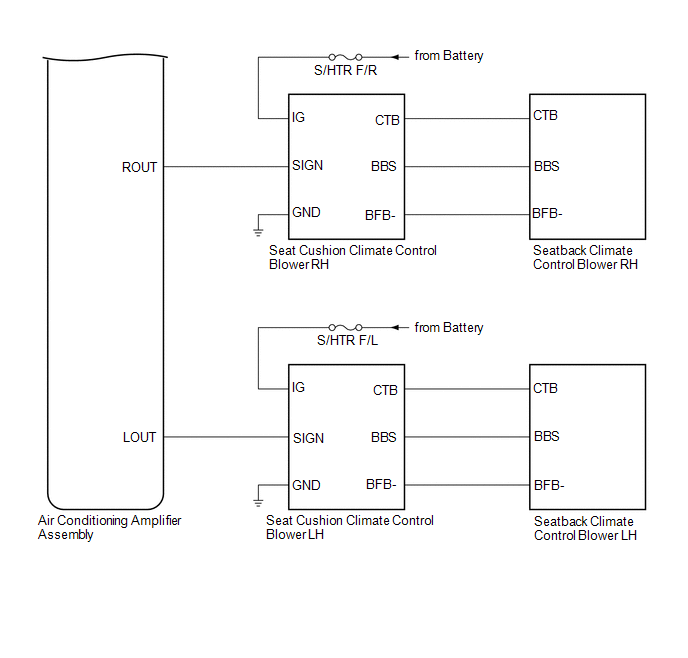

Home >> Toyota >> 2021 >> Avalon Touring >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> Climate Control Seat - Diagnostics & Symptom Tests (Except Hybrid) >> CLIMATE CONTROL SEAT SYSTEM (for Gasoline Model) >> System Diagram [04/2018 -] >> System Diagram [04/2018 -]
