Parts Location [04/2018 -]: Illustration

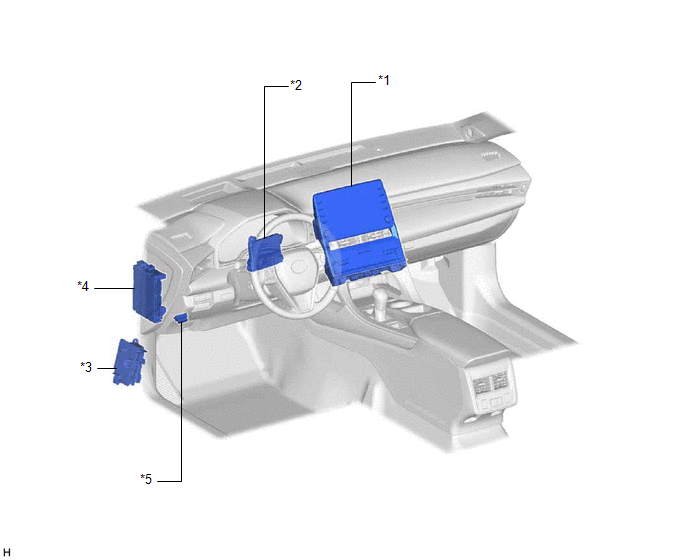

GTY925713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLIMATE CONTROL SWITCH (RADIO AND DISPLAY RECEIVER ASSEMBLY) *2 AIR CONDITIONING AMPLIFIER ASSEMBLY
*3 NO. 4 RELAY BLOCK ASSEMBLY
- S/HTR F/L FUSE
- S/HTR F/R FUSE		 *4 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 4 FUSE
*5 DLC3 - -

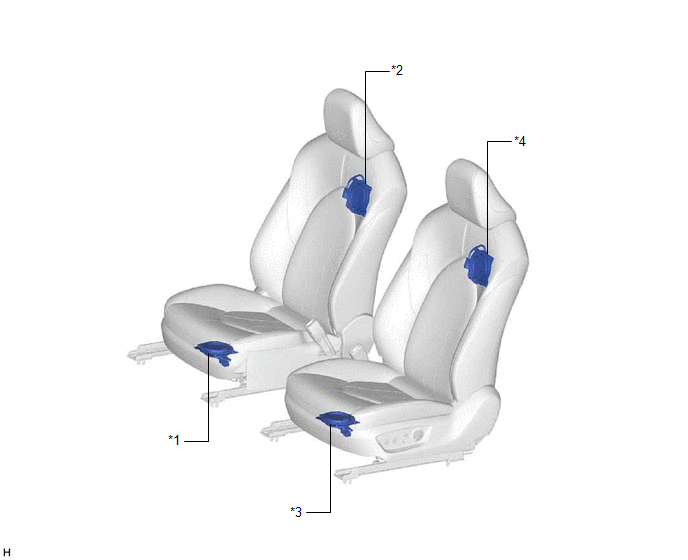

GTY844047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SEAT CUSHION CLIMATE CONTROL BLOWER RH *2 SEATBACK CLIMATE CONTROL BLOWER RH
*3 SEAT CUSHION CLIMATE CONTROL BLOWER LH *4 SEATBACK CLIMATE CONTROL BLOWER LH
