Removal [04/2018 - ]: Procedure

Refer to PROCEDURE - Step 4

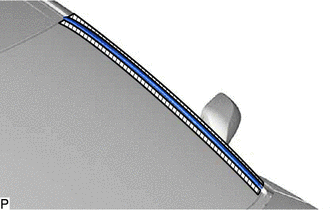

1. Apply protective tape around the lower windshield outside moulding as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

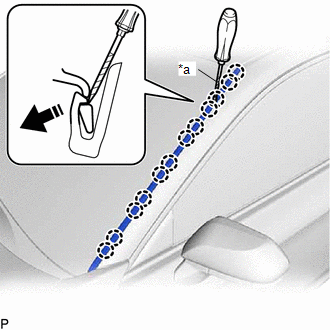

2. Using a screwdriver with its tip wrapped with protective tape, disengage the 12 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Remove in this Direction

HINT:

Perform the following procedure only when replacement of a No. 1 windshield outside moulding clip is necessary.

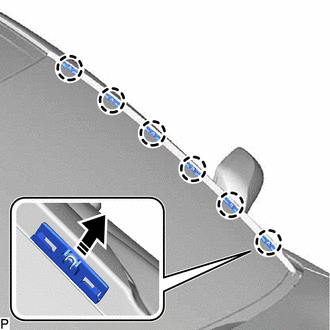

1. Disengage the 6 claws to remove the 6 No. 1 windshield outside moulding clips as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

HINT:

Perform the following procedure only when replacement of a No. 3 windshield outside moulding clip is necessary.

1. Remove the windshield glass sub-assembly.

   Refer to REMOVAL [04/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - ]

2. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
3. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

   Standard Measurement

   Area	Measurement
   A	5.0 mm (0.197 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Tape

   NOTE:

   Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

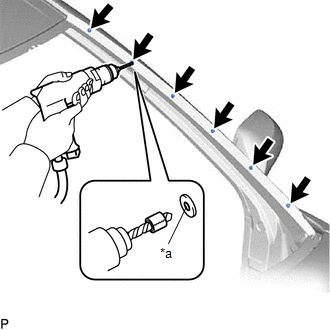

4. Lightly press the drill bit against the No. 3 windshield outside moulding clips to drill off the No. 3 windshield outside moulding clip flanges, and remove the 6 No. 3 windshield outside moulding clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Flange

   WARNING:

   Be careful of the drilled No. 3 windshield outside moulding clips, as they may be hot.

   NOTE:

   • Make sure to protect both the inside and outside of the vehicle as the No. 3 windshield outside moulding clip shavings will fly about.
   • Pressing the drill too firmly will cause the No. 3 windshield outside moulding clip to turn and result in the No. 3 windshield outside moulding clip not being drilled through.
   • Prying the No. 3 windshield outside moulding clip with the drill may damage the No. 3 windshield outside moulding clip installation hole or drill bit.
5. Using a vacuum cleaner, remove the No. 3 windshield outside moulding clip fragments and shavings from the drilled areas.
