Removal [04/2018 - ]: Procedure

  1. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING

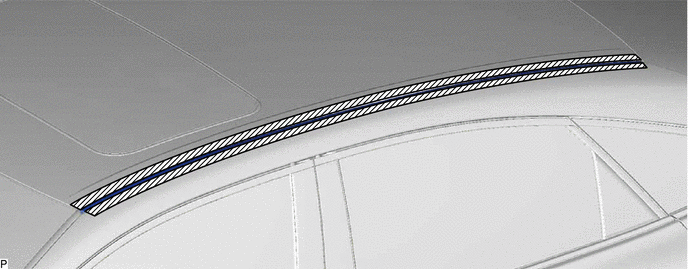

    1. Apply protective tape around the center roof drip side finish moulding as shown in the illustration.
      GTY858057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -

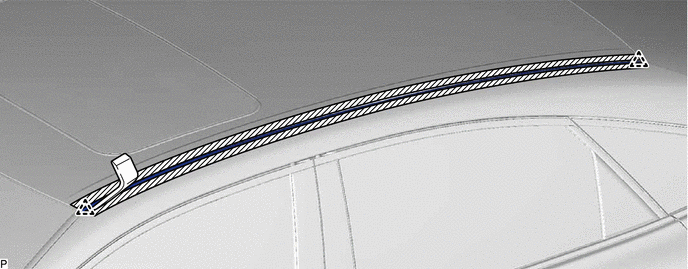

    2. Using a moulding remover, disengage the 2 clips and remove the center roof drip side finish moulding.
      GTY868182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not remove the No. 1 roof drip side finish moulding clips.
      • If a No. 1 roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
