Removal [04/2018 - ]: Procedure

See step  1

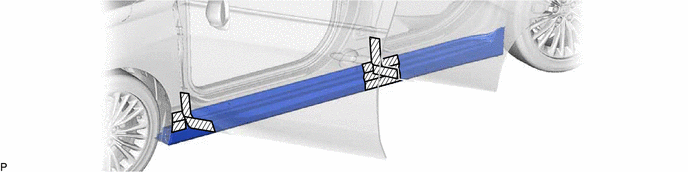

1. Apply protective tape around the rocker panel moulding assembly and doors as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   -

   -

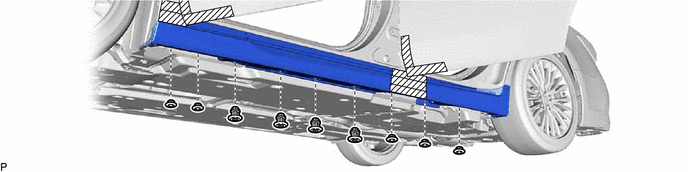

2. Remove the 9 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

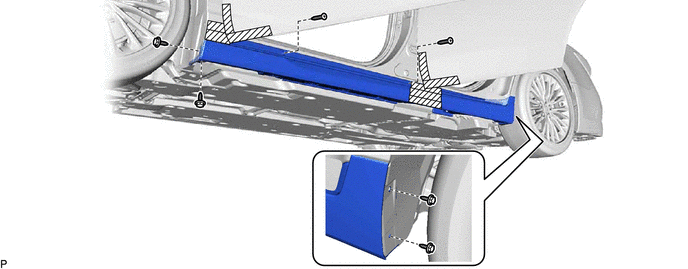

3. Remove the 6 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

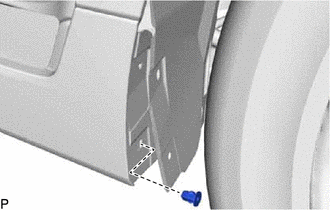

4. Pull back the edge of the rear fender liner LH and remove the grommet as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not apply excessive force when pulling back the rear fender liner LH.

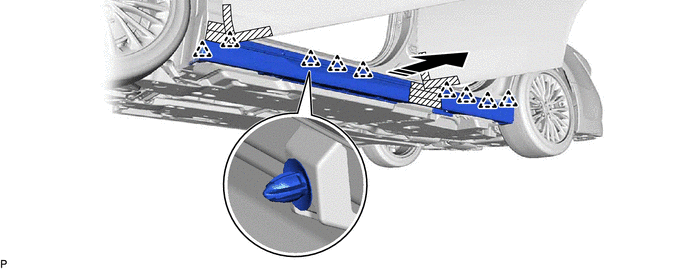

5. Disengage the 9 clips to remove the rocker panel moulding assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

6. Remove the 9 clips from the rocker panel moulding.
