Removal [04/2018 - ]: Procedure

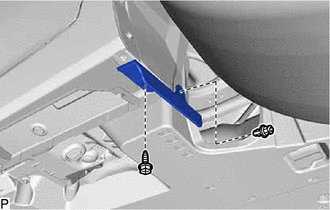

  1. REMOVE FRONT ROCKER PANEL MOULDING END COVER
    1. Remove the clip.
      GTY868189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and front rocker panel moulding end cover.
