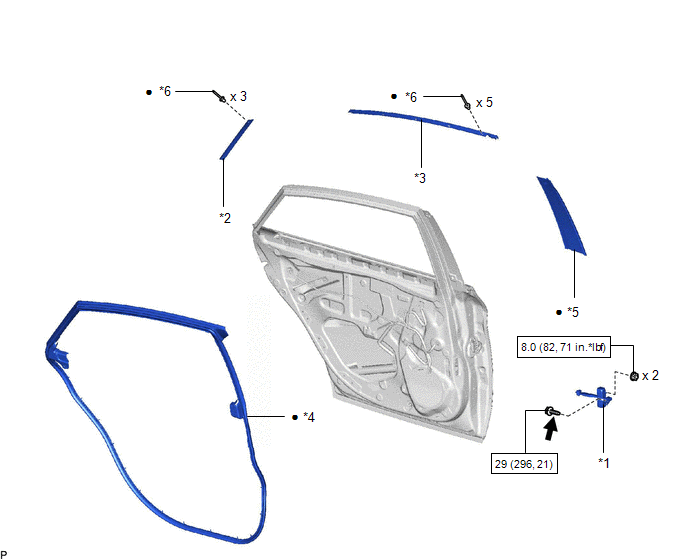

Components [04/2018 - ]
| Callout | Description | Callout | Description |
| *1 | REAR DOOR CHECK ASSEMBLY | *2 | REAR DOOR REAR WINDOW FRAME MOULDING |
| *3 | REAR DOOR UPPER WINDOW FRAME MOULDING | *4 | REAR DOOR WEATHERSTRIP |
| *5 | REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE) | *6 | RIVET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |
