Components [04/2018 - ]

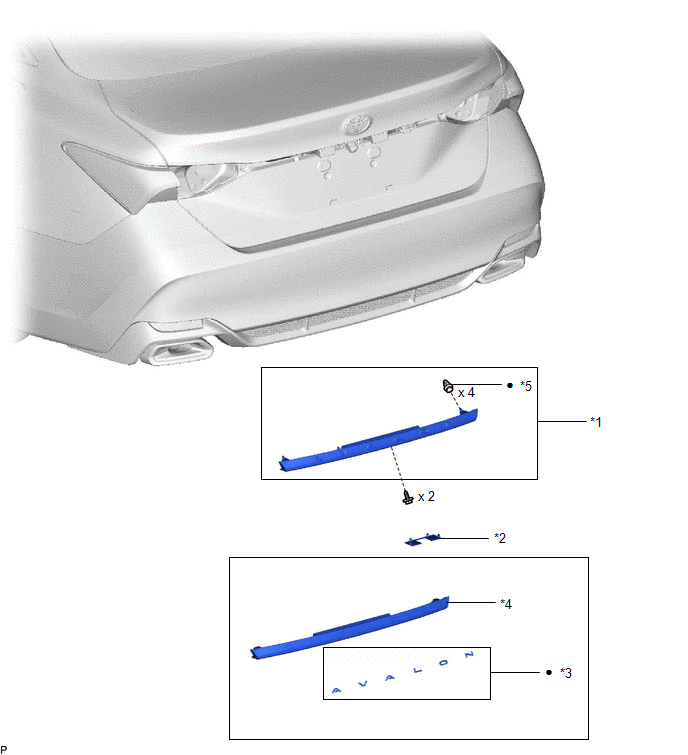

Fig 1: Luggage Compartment Door Outside Garnish Replacement Components
GTY919422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY *2 NO. 2 BACK DOOR OUTSIDE GARNISH
*3 NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE *4 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
*5 CLIP - -
• Non-reusable part - -
