Components [04/2018 - ]

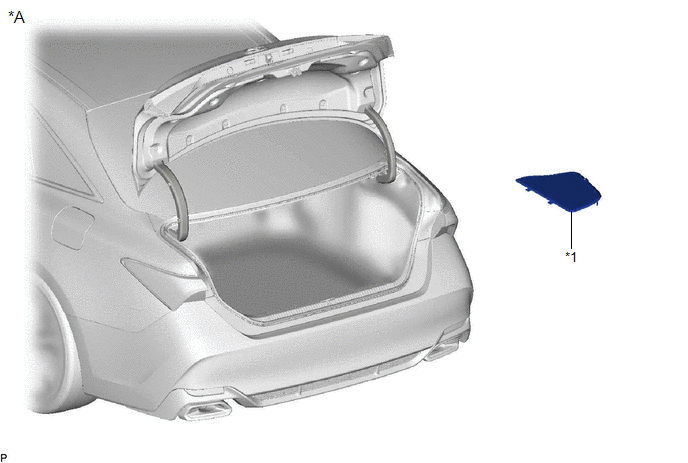

Fig 1: Black Out Tape (For Rear Door) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for HV Model	-	-
*1	LUGGAGE TRIM SERVICE HOLE COVER	-	-

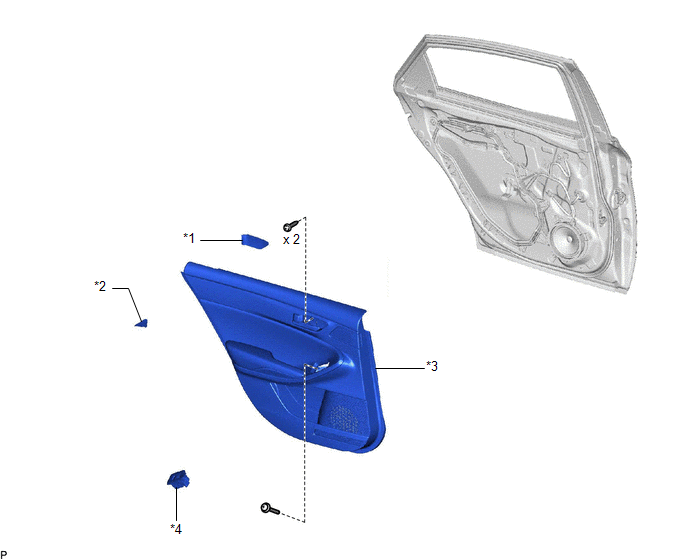

Fig 2: Black Out Tape (For Rear Door) Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR DOOR ARMREST COVER SUB-ASSEMBLY	*2	REAR DOOR TRIM ASSEMBLY COVER
*3	REAR DOOR TRIM BOARD SUB-ASSEMBLY	*4	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

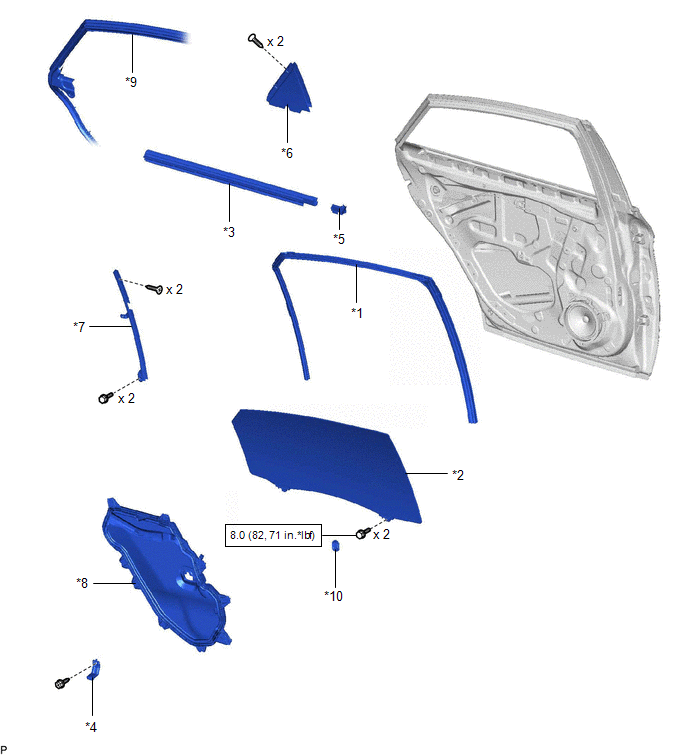

Fig 3: Black Out Tape (For Rear Door) Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DOOR GLASS RUN	*2	REAR DOOR GLASS SUB-ASSEMBLY
*3	REAR DOOR INNER GLASS WEATHERSTRIP	*4	REAR DOOR NO. 1 TRIM BRACKET
*5	REAR DOOR NO. 2 SERVICE HOLE COVER	*6	REAR DOOR REAR GUIDE SEAL
*7	REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY	*8	REAR DOOR SERVICE HOLE COVER
*9	REAR DOOR WEATHERSTRIP	*10	HOLE PLUG
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

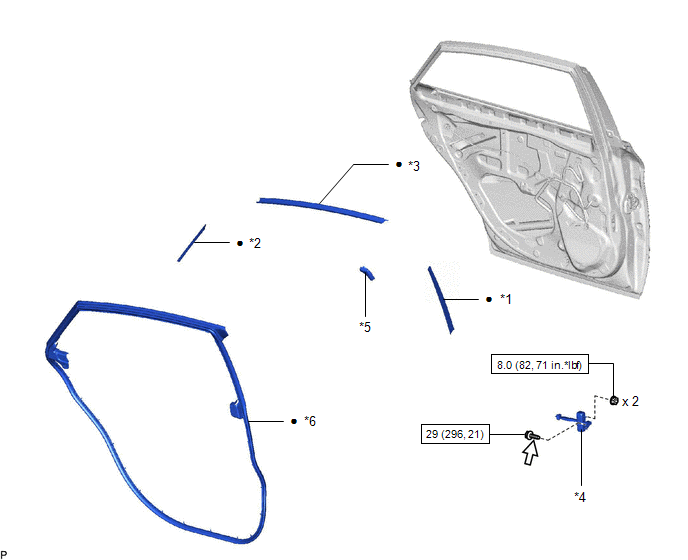

Fig 4: Black Out Tape (For Rear Door) Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	NO. 1 BLACK OUT TAPE	*2	NO. 2 BLACK OUT TAPE
*3	NO. 3 BLACK OUT TAPE	*4	REAR DOOR CHECK ASSEMBLY
*5	REAR DOOR FRAME GARNISH	*6	REAR DOOR WEATHERSTRIP
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part
