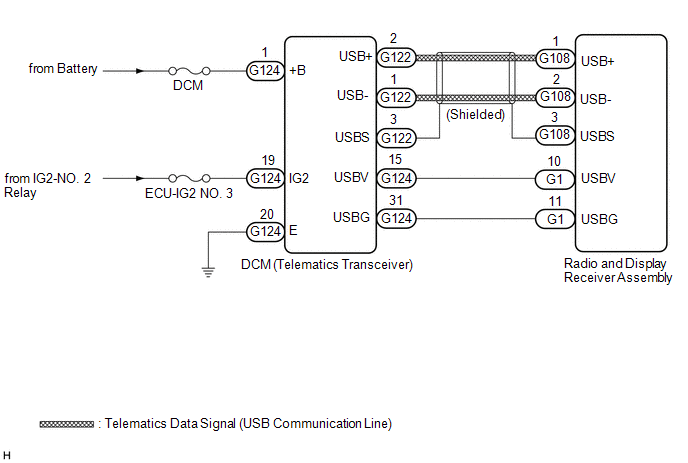

DTC B15DB: Telematics Transceiver Disconnected [08/2020 -]: Wiring Diagram

GTY992274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
