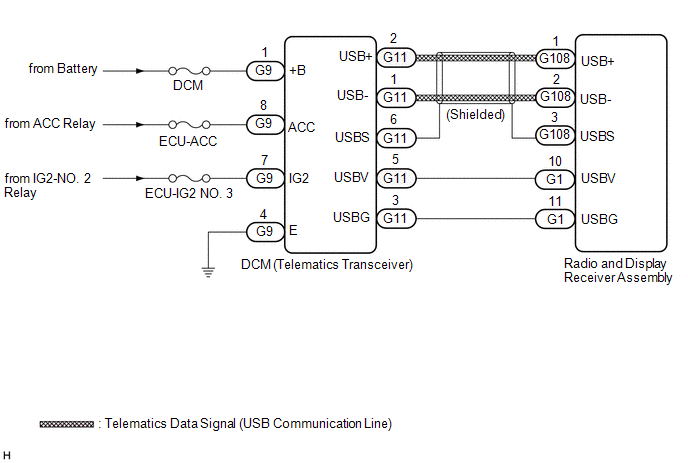

DTC B15DB: Telematics Transceiver Disconnected [04/2018 - 08/2020]: Wiring Diagram

GTY906777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
