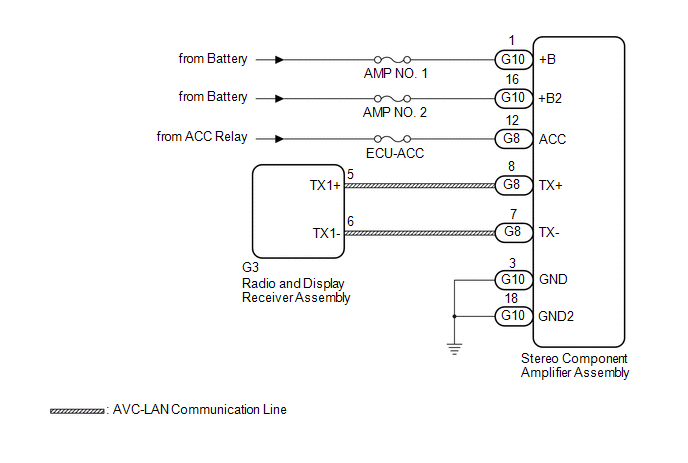

DTC B15D3: Stereo Component Amplifier Disconnected [04/2018 - 08/2019]: Wiring Diagram

GTY902154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
