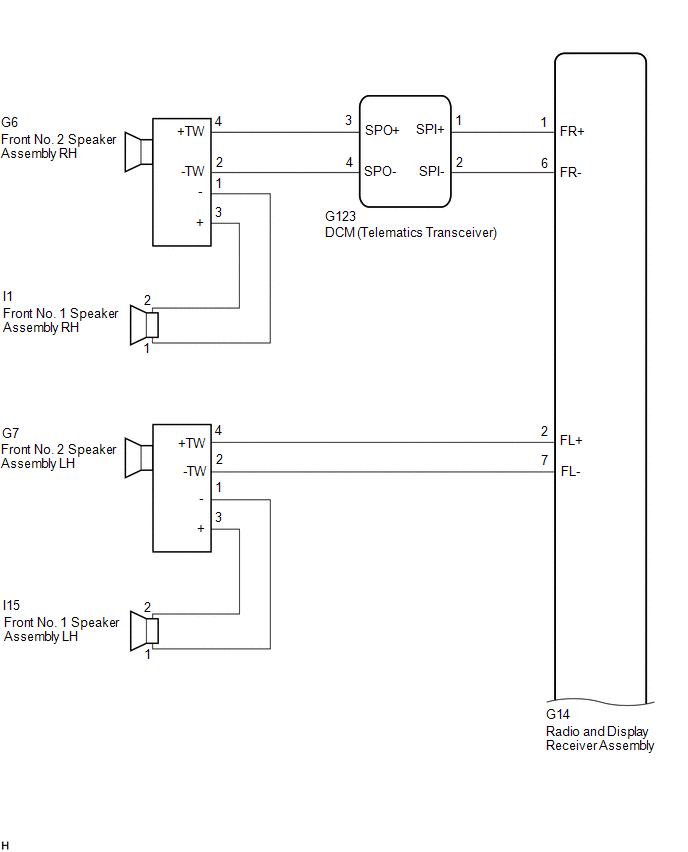

DTC B15C3: Speaker Output Short [08/2020 -]: Wiring Diagram

GTY982843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY921541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
