DTC B15C3: Speaker Output Short [08/2019 - 08/2020]: Wiring Diagram

GTY920335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

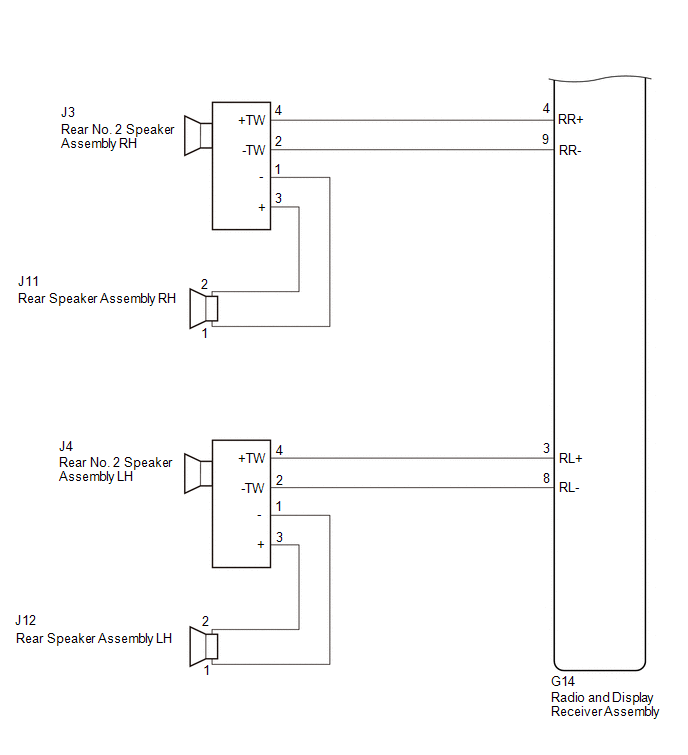

GTY921541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
