DTC B15C3: Speaker Output Short [04/2018 - 08/2019]: Wiring Diagram

for 8 Speakers

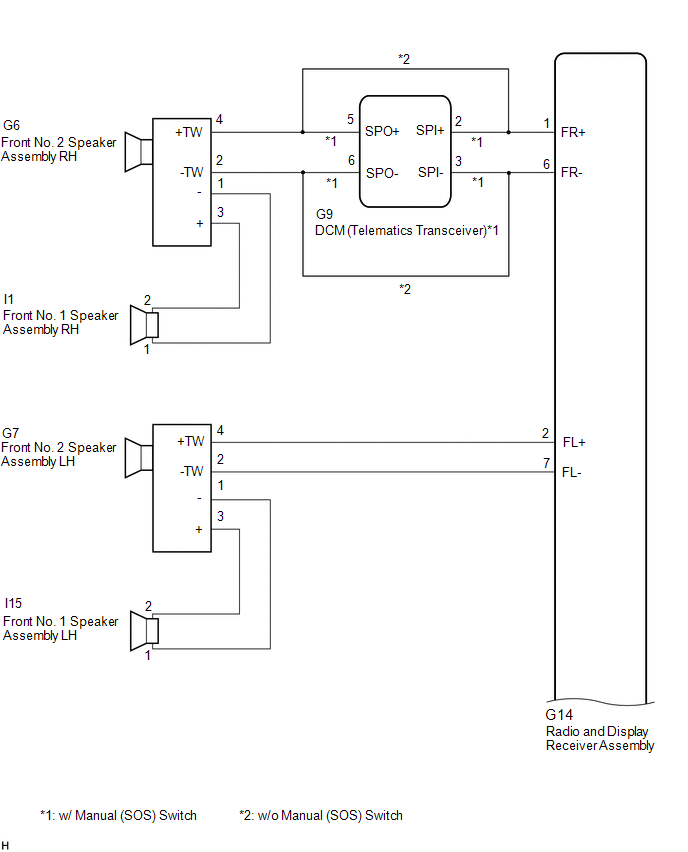

GTY920335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

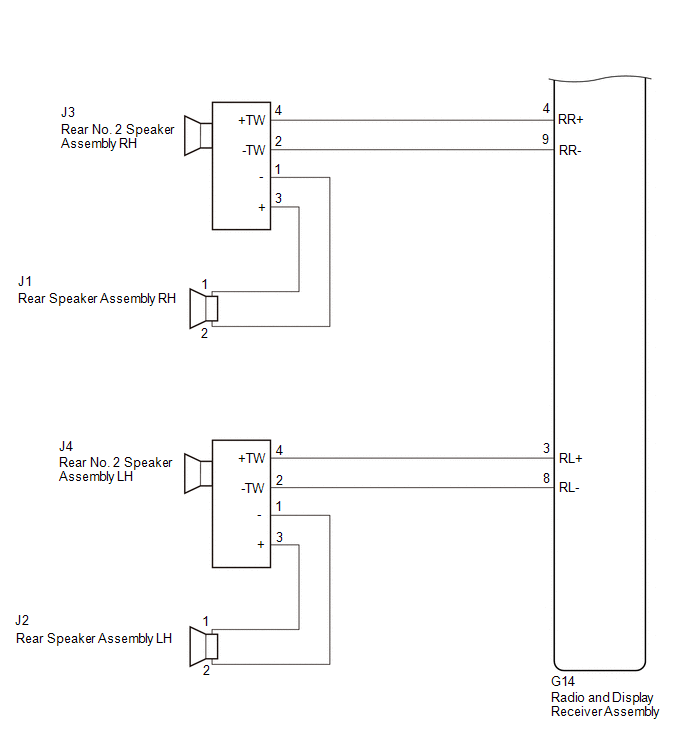

GTY921529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 14 Speakers

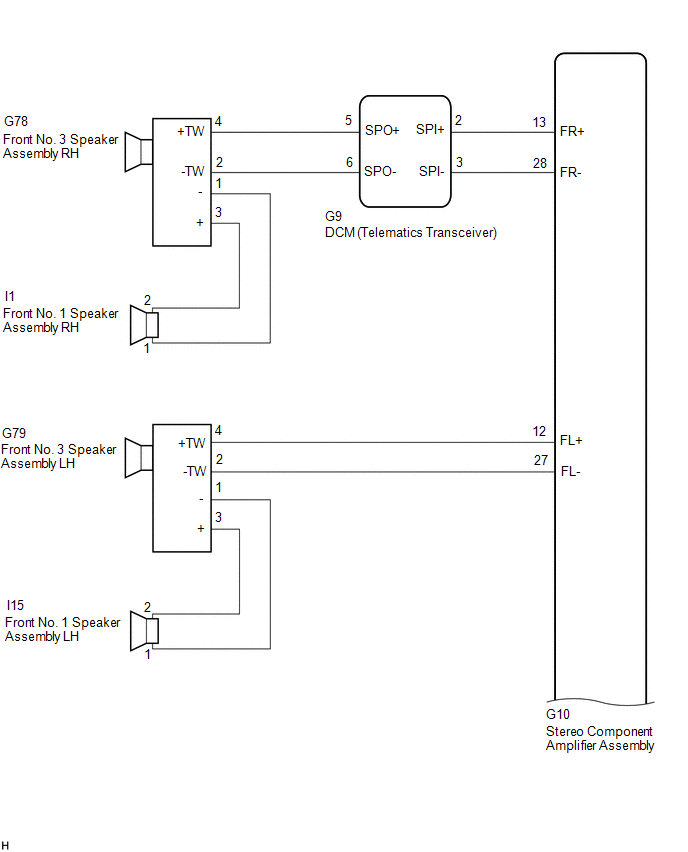

GTY890992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY860844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

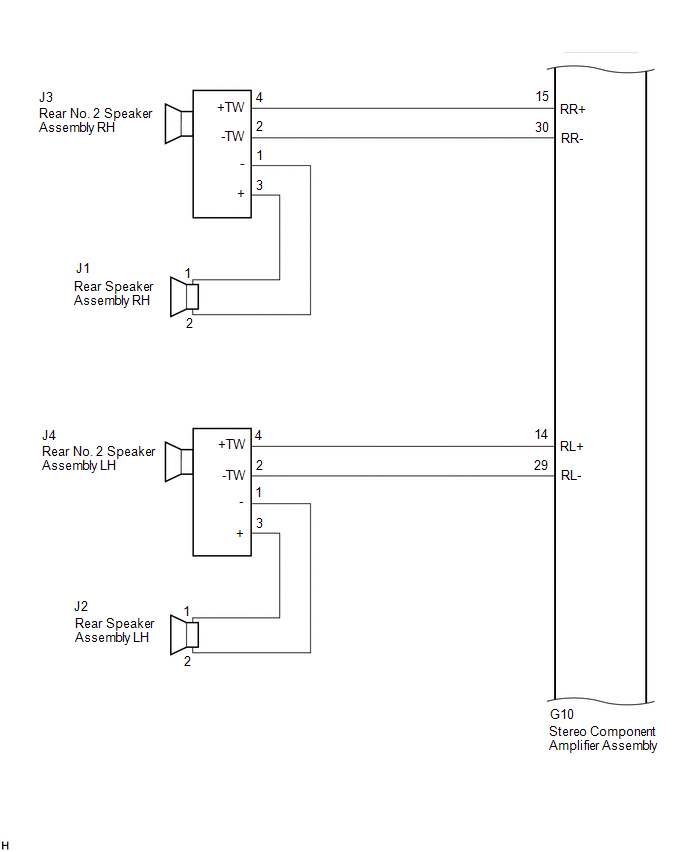

GTY839413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

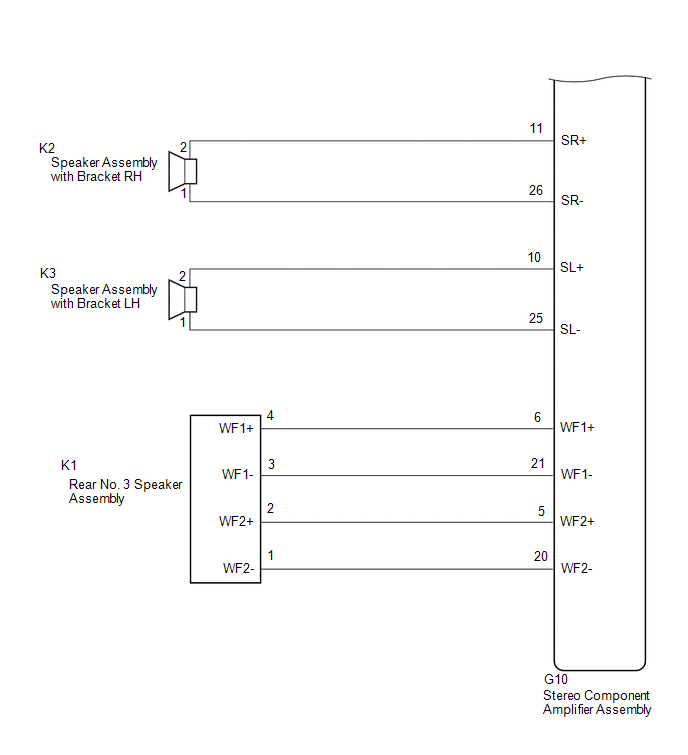

GTY867719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
