Lane Departure Alert System - Diagnostic Codes & Circuit Tests (Except Hybrid)
>>
LANE DEPARTURE ALERT SYSTEM (w/ Steering Control) (for Gasoline Model)
>>
Circuit Tests
>>
Steering Pad Switch Circuit [08/2020 - 08/2021]
>>
Wiring Diagram

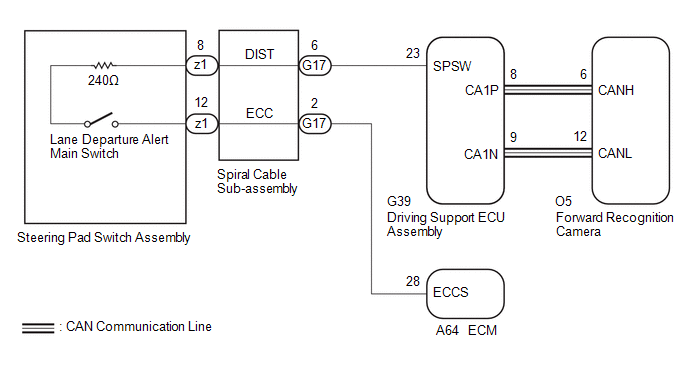

Steering Pad Switch Circuit [08/2020 - 08/2021]: Wiring Diagram
for 2GR-FKS
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for A25A-FKS
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
