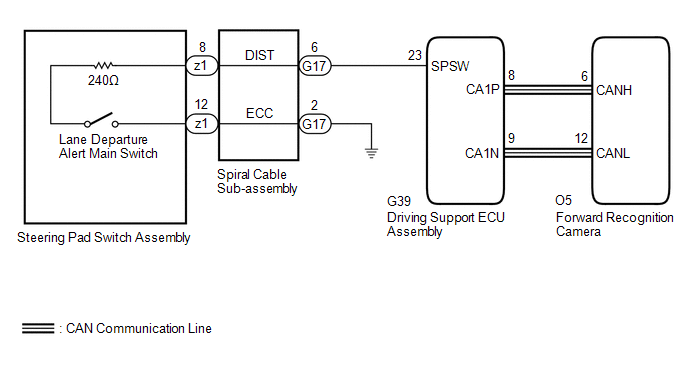

Steering Pad Switch Circuit [04/2018 - 08/2020]: Wiring Diagram

GTY860500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
