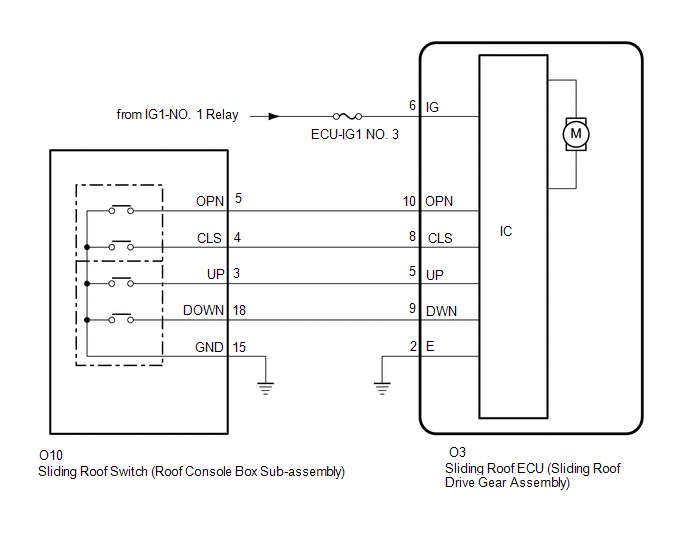

Sliding Roof does not Move by Operating Sliding Roof Control Switch [04/2018 - ]: Wiring Diagram

GTY942710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
