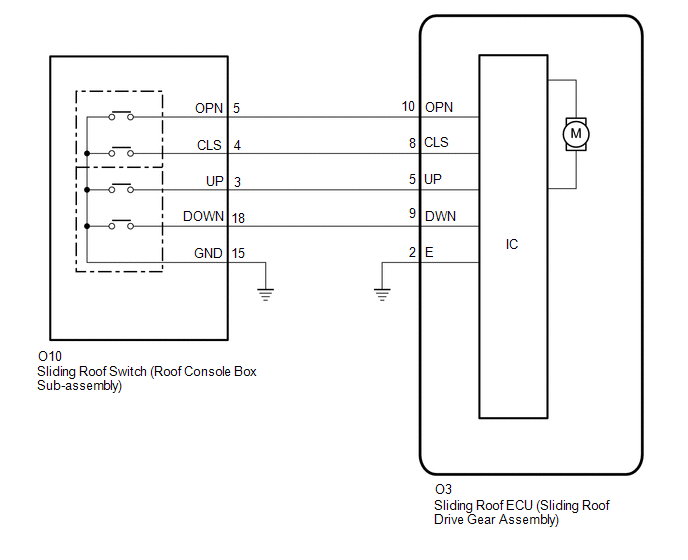

DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure [04/2018 - ]: Wiring Diagram

GTY848498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
