Removal [04/2018 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to DISASSEMBLY [04/2018 - 08/2020] , or refer to DISASSEMBLY [08/2020 - 08/2021] , or refer to DISASSEMBLY [08/2021 - ]

  2. REMOVE SEAT MEMORY SWITCH

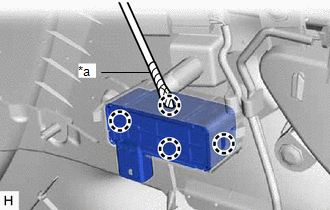

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the seat memory switch from the front door trim board sub-assembly LH.
      GTY896537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
