Home >> Toyota >> 2021 >> Avalon TRD >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim (Service Information) >> Front Console Box >> Removal [04/2018 - 08/2020] >> Procedure

Removal [04/2018 - 08/2020]: Procedure

  1. REMOVE CONSOLE BOX POCKET
    1. Remove the console box pocket.
      GTY864122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY864123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH

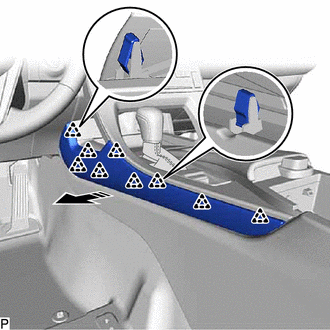

    1. Disengage the 9 clips as shown in the illustration to remove the lower instrument panel finish panel LH.
      GTY858111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH
    1. Disengage the 8 clips as shown in the illustration to remove the lower instrument panel finish panel RH.
      GTY869907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
    1. Disengage the 6 clips as shown in the illustration.
      GTY861436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the 4 connectors.
      GTY864118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clamps to remove the front console upper panel garnish.
  6. REMOVE CONSOLE BOX POCKET SUB-ASSEMBLY

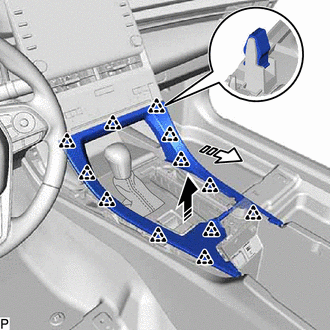

    1. Disengage the 12 clips as shown in the illustration to remove the console box pocket sub-assembly.
      GTY892080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  7. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

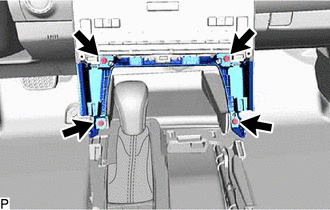

    1. Remove the 4 screws.
      GTY864140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and 2 guides as shown in the illustration to remove the center instrument cluster finish panel sub-assembly.
      GTY944579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for Gasoline Model: Refer to PROCEDURE - Step 1

    for HV Model: Refer to PROCEDURE - Step 1

  9. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Disengage the 7 clips as shown in the illustration.
      GTY928224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the 2 connectors to remove the rear upper console panel sub-assembly.
      GTY864127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    1. Disengage the 2 claws, clip and guide as shown in the illustration to remove the instrument panel finish panel end LH.
      GTY854057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  11. REMOVE CONSOLE BOX BEZEL

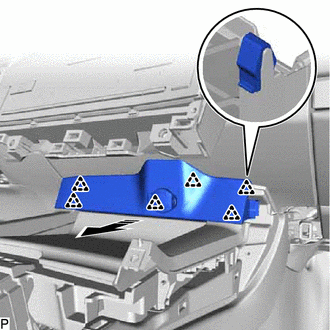

    1. Disengage the 6 clips as shown in the illustration.
      GTY870849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector to remove the console box bezel.
      GTY931920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE UPPER FRONT CONSOLE PANEL SUB-ASSEMBLY
    1. Disengage the 4 clips as shown in the illustration.
      GTY899929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

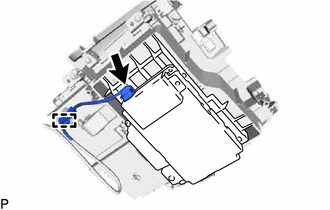

    2. Disconnect the connector and disengage the clamp to remove the upper front console panel sub-assembly.
      GTY864246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CONSOLE ASSEMBLY
    1. Disconnect the 2 connectors.
      GTY864250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 2 screws.
      GTY931921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips as shown in the illustration to remove the console assembly.
      GTY919068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
