Removal [04/2018 - 08/2021]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 7 clips.
      GTY863574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the cool air intake duct seal as shown in the illustration.
      GTY901397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE FRONT BUMPER ASSEMBLY

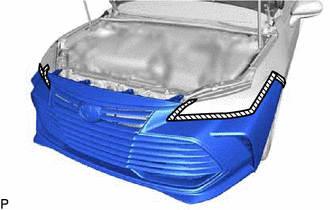

    1. Apply protective tape around the front bumper assembly as shown in the illustration.
      GTY939230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 2 clips.
      GTY863601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

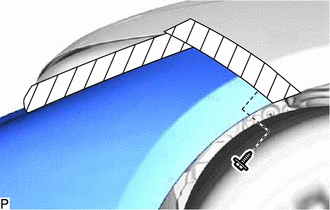

    3. Remove the screw.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY873174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 8 screws.
      GTY863583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

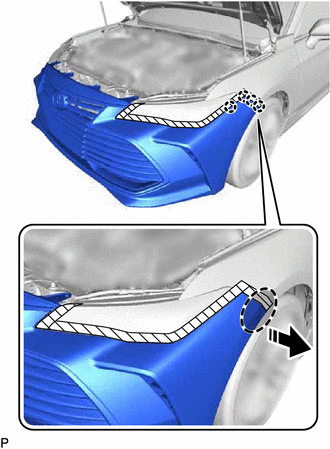

    5. Disengage the 4 claws as shown in the illustration.
      GTY920802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    6. Disconnect the connector.
      GTY913862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intuitive Parking Assist System
    7. w/ Intuitive Parking Assist System:
      1. Disconnect the connector.
    8. Remove the 4 bolts.
      GTY863582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disengage the 2 guides to remove the front bumper assembly as shown in the illustration.
      GTY846321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
