Removal [04/2018 - ]: Procedure

Refer to REMOVAL [04/2018 - ]

HINT:

Use the same procedure as for the LH side.

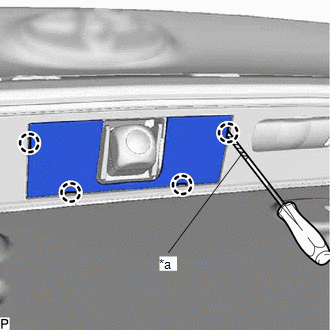

1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the No. 2 back door outside garnish.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

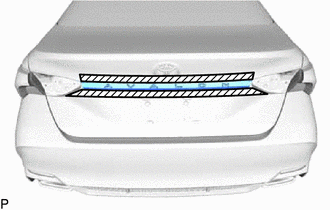

1. Apply protective tape around the luggage compartment door outside garnish sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

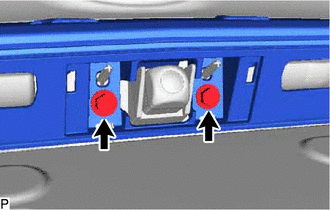

2. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

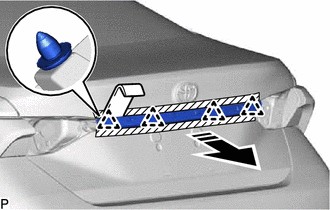

3. Using a moulding remover, disengage the 4 clips and remove the luggage compartment door outside garnish sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

4. Remove the 4 clips from the luggage compartment door outside garnish.
