Removal [08/2021 - ]: Procedure

  1. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER

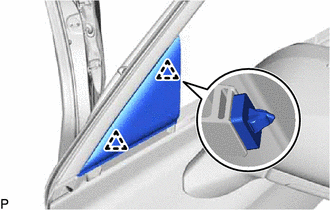

    1. Disengage the 2 clips to remove the front door front lower frame upper cover.
      GTY868198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
