Removal [08/2021 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [04/2018 - ]
- REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 2
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for A25A-FXS:
Refer to PROCEDURE - Step 3
for 2GR-FKS:
Refer to PROCEDURE - Step 2
for A25A-FKS:
Refer to PROCEDURE - Step 2
- REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE FRONT DOOR TRIM POCKET COVER
Refer to PROCEDURE - Step 5
- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 6
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 7
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE FRONT DOOR TRIM BRACKET
Refer to PROCEDURE - Step 28
- REMOVE FRONT DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 29
- REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 30
- REMOVE FRONT DOOR VENT SEAL
Refer to PROCEDURE - Step 32
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 33

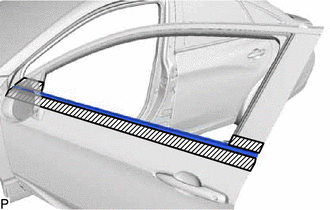

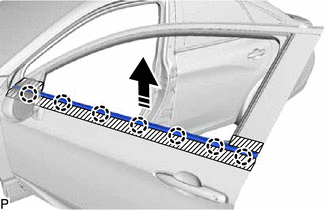

- REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
