Removal [08/2021 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [04/2018 - ]
REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 2
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for A25A-FXS:

Refer to PROCEDURE - Step 3

for 2GR-FKS:

Refer to PROCEDURE - Step 2

for A25A-FKS:

Refer to PROCEDURE - Step 2
REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
REMOVE FRONT DOOR TRIM POCKET COVER
Refer to PROCEDURE - Step 5
REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 6
REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 7
REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
Refer to PROCEDURE - Step 22
REMOVE FRONT DOOR TRIM BRACKET
Refer to PROCEDURE - Step 28
REMOVE FRONT DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 29
REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 30
REMOVE FRONT DOOR PANEL PROTECTOR
Refer to PROCEDURE - Step 31
REMOVE FRONT DOOR VENT SEAL
Refer to PROCEDURE - Step 32
REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 33
REMOVE FRONT DOOR GLASS RUN
Refer to PROCEDURE - Step 35
DISCONNECT FRONT DOOR WEATHERSTRIP
See step 5
REMOVE DOOR FRAME GARNISH
Refer to PROCEDURE - Step 47

REMOVE NO. 2 BLACK OUT TAPE

HINT:

When removing the No. 2 black out tape, heat the vehicle body and No. 2 black out tape using a heat light.

HEATING TEMPERATURE

Item	Temperature
No. 2 Black Out Tape and Vehicle Body	40 to 60°C (104 to 140°F)

WARNING:

Do not touch the heat light and heated parts, touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the vehicle body excessively.

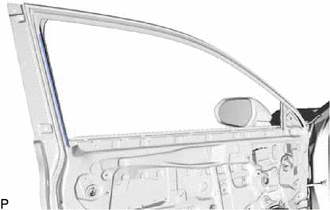

Using a heat light, heat the No. 2 black out tape and vehicle body.

Pull back on one of the ends of the No. 2 black out tape to remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When pulling on the No. 2 black out tape, pull it parallel to the vehicle body.

REMOVE NO. 1 BLACK OUT TAPE

HINT:

When removing the No. 1 black out tape, heat the vehicle body and No. 1 black out tape using a heat light.

HEATING TEMPERATURE

Item	Temperature
No. 1 Black Out Tape and Vehicle Body	40 to 60°C (104 to 140°F)

WARNING:

Do not touch the heat light and heated parts, touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the vehicle body excessively.

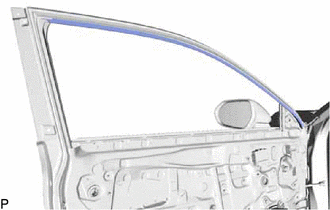

Using a heat light, heat the No. 1 black out tape and vehicle body.

Pull back on one of the ends of the No. 1 black out tape to remove it.

HINT:

When pulling on the No. 1 black out tape, pull it parallel to the vehicle body.
