Parts Location [04/2018 - ]: Illustration

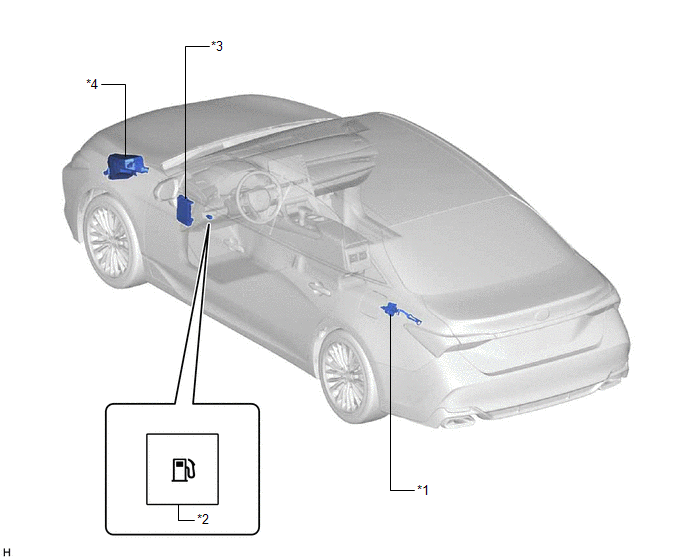

GTY922977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL LID LOCK WITH MOTOR ASSEMBLY *2 FUEL LID OPENER SWITCH
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- FUEL OPN RELAY		 *4 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- FUEL OPN FUSE
