Adjustment [08/2020 -]: Procedure

INSPECT REAR DOOR

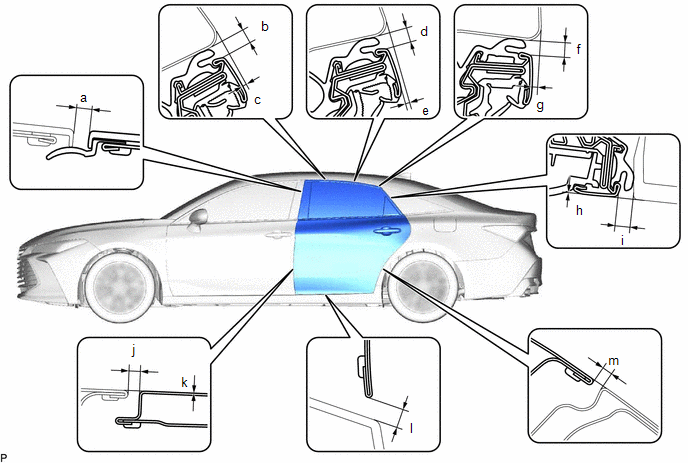

Check that the clearance measurements of areas a through m are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	2.1 to 6.1 mm (0.0827 to 0.240 in.)	b	3.15 to 6.55 mm (0.124 to 0.258 in.)
c	0.05 to 4.05 mm (0.002 to 0.159 in.)	d	3.15 to 6.55 mm (0.124 to 0.258 in.)
e	-0.05 to 3.95 mm (-0.002 to 0.156 in.)	f	3.15 to 6.55 mm (0.124 to 0.258 in.)
g	0.25 to 4.25 mm (0.01 to 0.167 in.)	h	0.1 mm (0.00394 in.)
i	4.5 to 7.9 mm (0.177 to 0.311 in.)	j	4.0 mm (0.157 in.)
k	0 mm (0 in.)	l	3.65 to 6.65 mm (0.144 to 0.262 in.)
m	2.0 to 5.0 mm (0.079 to 0.197 in.)	-	-

ADJUST REAR DOOR

NOTE:

Make sure to turn the engine switch (for Gasoline Model) or power switch (for HV Model) off before adjusting the door lock strikers.

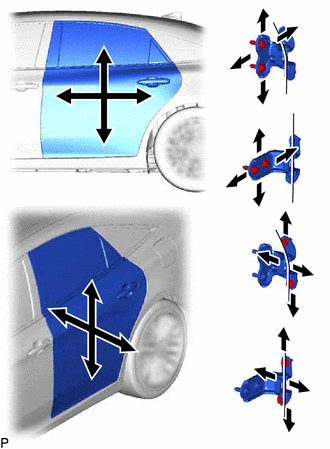

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

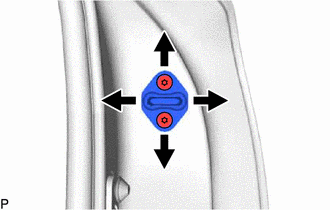

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
