Components [04/2018 -]

Fig 1: Rear Door Opening Trim Weatherstrip Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Gasoline Model	*B	w/ Seat Heater System
*1	SPARE WHEEL COVER ASSEMBLY	-	-

Fig 2: Rear Door Opening Trim Weatherstrip Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Gasoline Model	*B	w/ Seat Heater System
*1	LUGGAGE COMPARTMENT INNER TRIM PAD	*2	REAR CENTER SEAT OUTER BELT ASSEMBLY
*3	REAR SEAT CUSHION ASSEMBLY	*4	REAR SEAT CUSHION LOCK HOOK
•	Non-reusable part	-	-

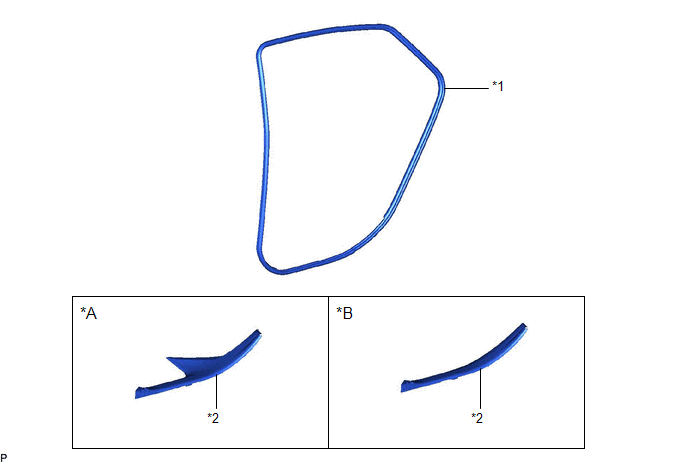

Fig 3: Rear Door Opening Trim Weatherstrip Replacement Components (3 Of 3)

*A	for Gasoline Model	*B	for HV Model
*1	REAR DOOR OPENING TRIM WEATHERSTRIP	*2	REAR DOOR SCUFF PLATE
