Components [08/2019 -]

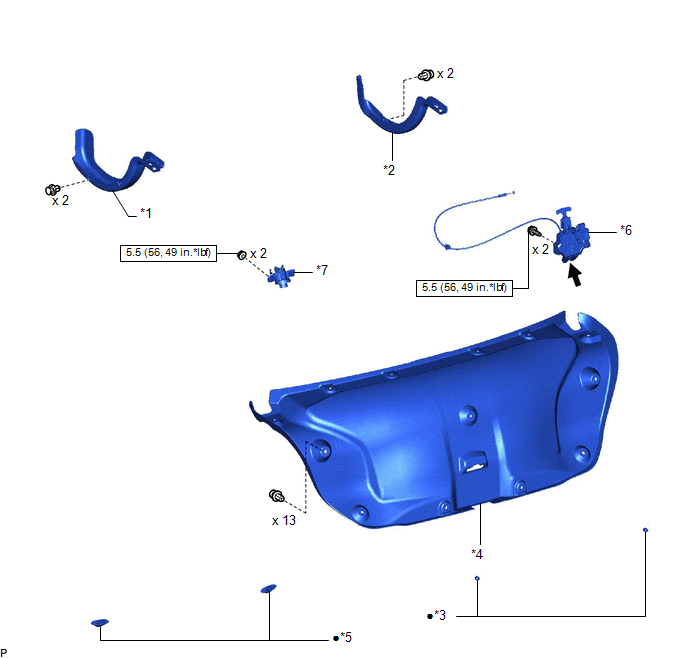

Fig 1: Luggage Compartment Door Replacement Components With Torque Specifications (1 Of 3) [08/2019 -]
| Callout | Description | Callout | Description |
| *1 | BACK DOOR UPPER HINGE PROTECTOR LH | *2 | BACK DOOR UPPER HINGE PROTECTOR RH |
| *3 | HOLE PLUG | *4 | LUGGAGE COMPARTMENT DOOR COVER |
| *5 | LUGGAGE COMPARTMENT DOOR CUSHION | *6 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY |
| *7 | LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

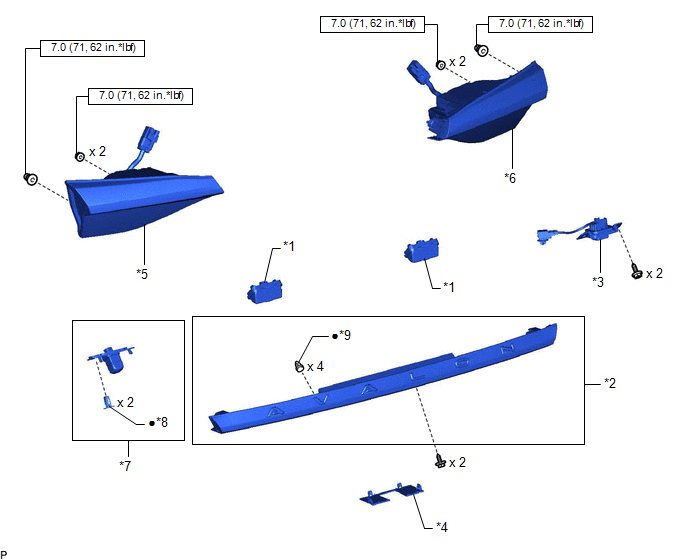

Fig 2: Luggage Compartment Door Replacement Components With Torque Specifications (2 Of 3) [08/2019 -]
| Callout | Description | Callout | Description |
| *1 | LICENSE PLATE LIGHT ASSEMBLY | *2 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
| *3 | LUGGAGE ELECTRICAL KEY SWITCH | *4 | NO. 2 BACK DOOR OUTSIDE GARNISH |
| *5 | REAR LIGHT ASSEMBLY LH | *6 | REAR LIGHT ASSEMBLY RH |
| *7 | TELEVISION CAMERA ASSEMBLY | *8 | GROMMET |
| *9 | CLIP | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

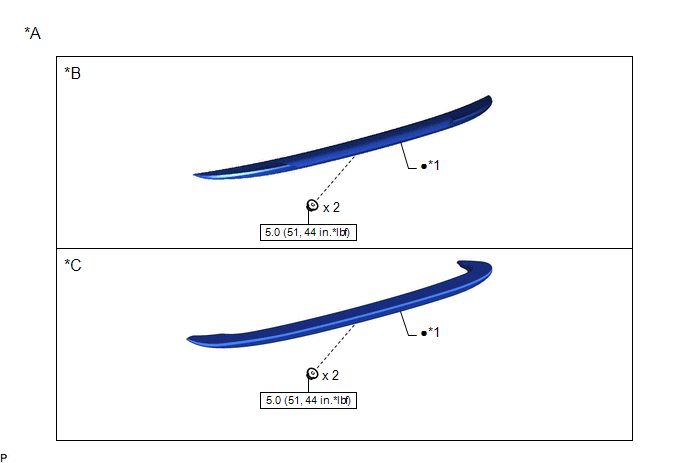

Fig 3: Luggage Compartment Door Replacement Components With Torque Specifications (3 Of 3) [08/2019 -]
| Callout | Description | Callout | Description |
| *A | w/ Rear Spoiler | *B | except TRD |
| *C | for TRD | - | - |
| *1 | REAR SPOILER SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
