Removal [04/2018 -]: Procedure

  1. REMOVE SPARE WHEEL COVER ASSEMBLY

    See step  1

  2. REMOVE BAGGAGE HOLDER NET

    See step  2

  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    See step  3

  4. REMOVE REAR FLOOR FINISH PLATE

    See step  4

  5. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

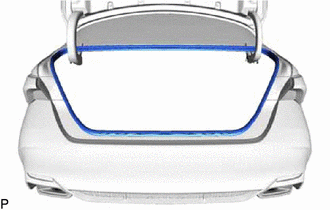

    1. Remove the luggage compartment door weatherstrip.
      GTY863206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
