Components [04/2018 -]

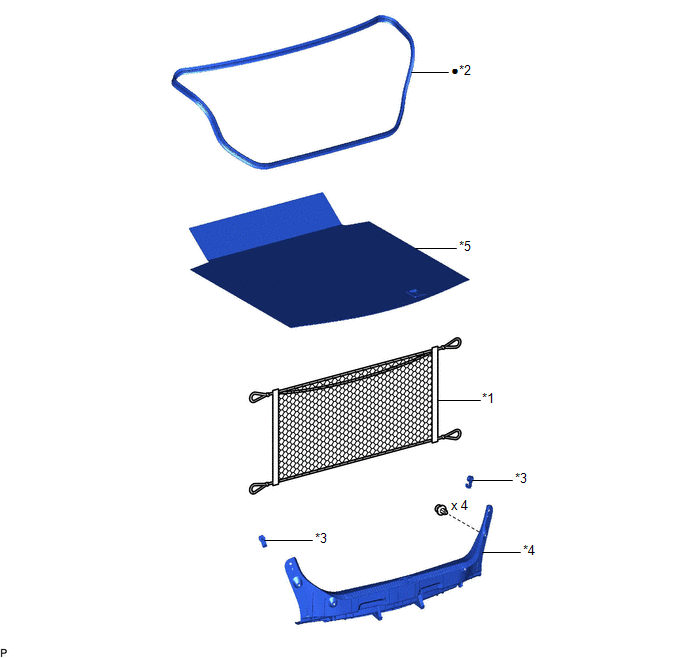

Fig 1: Luggage Compartment Door Weatherstrip Replacement Components
GTY884639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BAGGAGE HOLDER NET *2 LUGGAGE COMPARTMENT DOOR WEATHERSTRIP
*3 NO. 1 LUGGAGE COMPARTMENT TRIM HOOK *4 REAR FLOOR FINISH PLATE
*5 SPARE WHEEL COVER ASSEMBLY - -
• Non-reusable part - -
