Components [04/2018 -]

Fig 1: Luggage Compartment Door Support Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SPARE WHEEL COVER ASSEMBLY

Fig 2: Luggage Compartment Door Support Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BAGGAGE HOLDER NET	*2	LUGGAGE COMPARTMENT INNER TRIM PAD
*3	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	*4	REAR FLOOR FINISH PLATE

Fig 3: Luggage Compartment Door Support Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for HV Model	-	-
*1	LUGGAGE TRIM SERVICE HOLE COVER	-	-

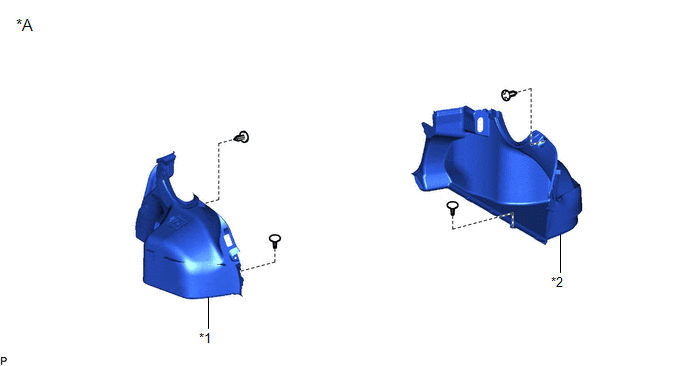

Fig 4: Luggage Compartment Door Support Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Gasoline Model	-	-
*1	LUGGAGE COMPARTMENT TRIM INNER COVER LH	*2	LUGGAGE COMPARTMENT TRIM INNER COVER RH

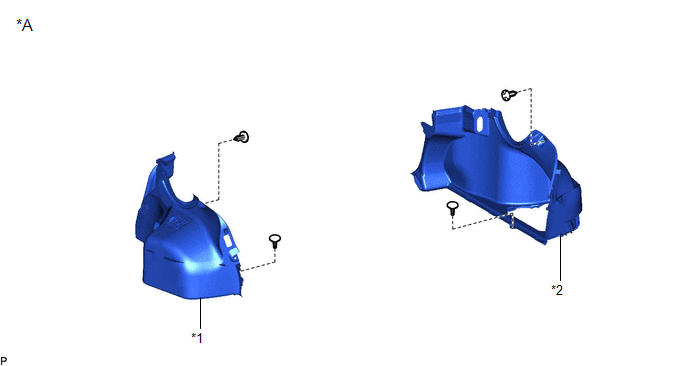

Fig 5: Luggage Compartment Door Support Replacement Components (5 Of 6)

*A	for HV Model	-	-
*1	LUGGAGE COMPARTMENT TRIM INNER COVER LH	*2	LUGGAGE COMPARTMENT TRIM INNER COVER RH

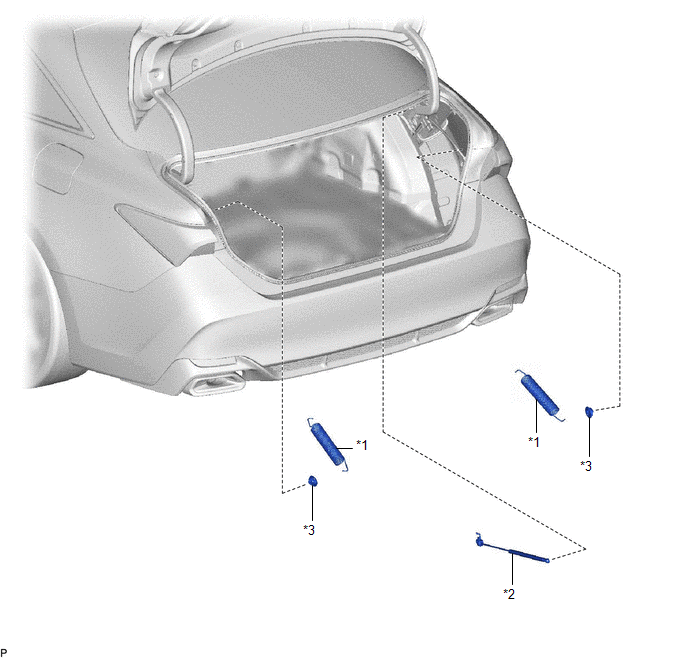

Fig 6: Luggage Compartment Door Support Replacement Components (6 Of 6)

*1	BACK DOOR STAY SPRING	*2	LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
*3	LUGGAGE DOOR HINGE SUPPORT BUSH	-	-
