Removal [04/2018 -]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [04/2018 -]

  2. REMOVE LUGGAGE ELECTRICAL KEY SWITCH
    1. Disconnect the connector.
      GTY932629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 screws.

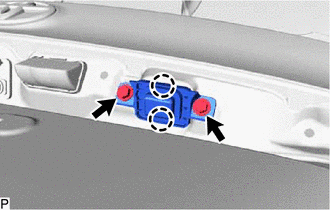

      GTY867633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws to remove the luggage electrical key switch.
