Removal [04/2018 -]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 3 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 -]

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 4 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 -]

  3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 6 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 -]

  4. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 7 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 -]

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 -]

  6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 -]

  7. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 -]

  8. REMOVE FUEL LID OPENER SWITCH

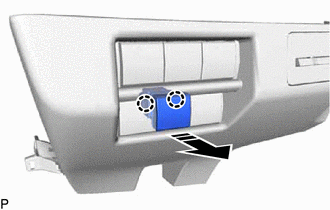

    1. Disengage the 2 claws and remove the fuel lid opener switch as shown in the illustration.
      GTY841478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
