Removal [04/2018 -]: Procedure

  1. REMOVE BAGGAGE HOLDER NET

    See step  2

  2. REMOVE SPARE WHEEL COVER ASSEMBLY

    See step  1

  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    See step  3

  4. REMOVE REAR FLOOR FINISH PLATE

    See step  4

  5. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD

    See step  5

  6. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH

    See step  9

  7. REMOVE FUEL FILLER OPENING LID LOCK COVER (w/ Cover)

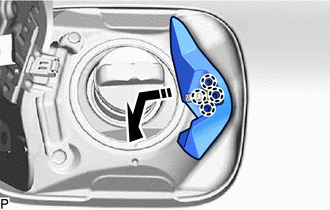

    1. Disengage the 4 claws and remove the fuel filler opening lid lock cover as shown in the illustration.
      GTY866808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

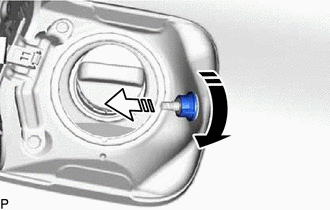

    1. Turn and remove the fuel filler opening lid lock retainer as indicated by the arrows, in the order shown in the illustration.
      GTY861025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction (1)
      Remove in this Direction (2)
  9. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

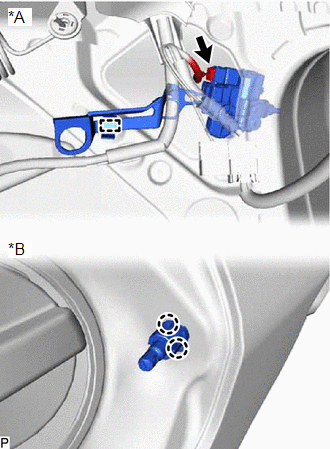

    1. Disengage the clamp.
      GTY885833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Inside
      *B Outside
    2. Disengage the 2 claws.
    3. Disconnect the connector to remove the fuel lid lock with motor assembly.
