Inspection [04/2018 -]: Procedure

  1. INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY
    1. Check the operation of the fuel lid lock with motor assembly (motor operation).
      1. Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and check the operation of the fuel lid lock with motor assembly.

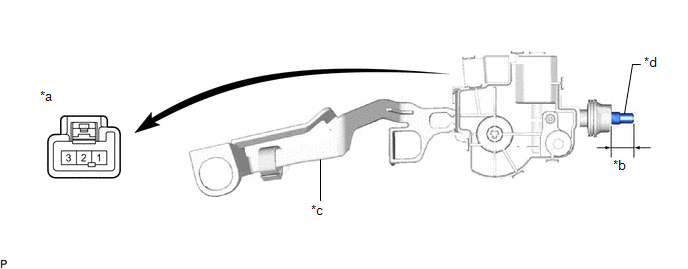

        GTY892510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Fuel Lid Lock with Motor Assembly)        		 *b Shaft Stroke
        *c Lever *d Shaft

        OK

        Auxiliary Battery Connection Specified Condition
        Auxiliary battery positive (+) → Terminal 1
        Auxiliary battery negative (-) → Terminal 2        		 Shaft retracts

        If the result is not as specified, replace the fuel lid lock with motor assembly.

    2. Check the operation of the fuel lid lock with motor assembly (fuel lid courtesy switch).
      1. Measure the resistance according the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2 - 3 Shaft not pushed (On) Below 1 Ω
        2 - 3 Shaft pushed (Off) 10 kΩ or higher

        If the result is not as specified, replace the fuel lid lock with motor assembly.

    3. Measure the shaft stroke.

      Standard

      Area Condition Specified Condition
      Shaft stroke Lever pulled 16.05 mm (0.632 in.)

      If the result is not as specified, replace the fuel lid lock with motor assembly.
