Components [04/2018 -]

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SPARE WHEEL COVER ASSEMBLY

Fig 2: Fuel Lid Opener Motor Assembly Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

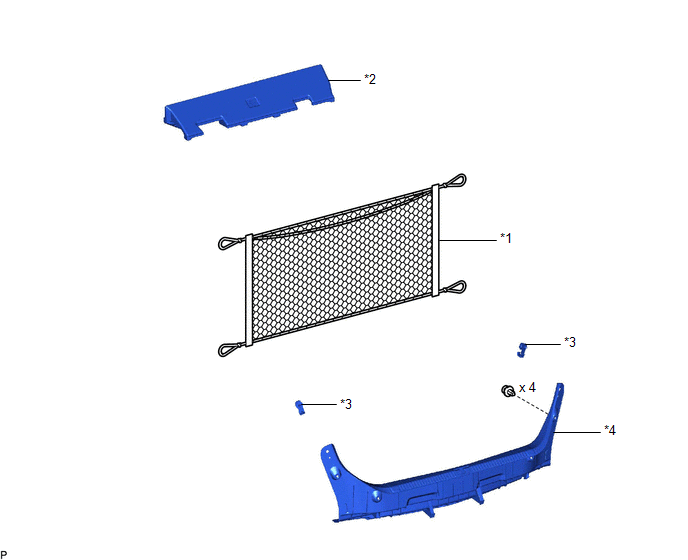

*1	BAGGAGE HOLDER NET	*2	LUGGAGE COMPARTMENT INNER TRIM PAD
*3	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	*4	REAR FLOOR FINISH PLATE

Fig 3: Fuel Lid Opener Motor Assembly Replacement Components (3 Of 4)

LUGGAGE COMPARTMENT TRIM INNER COVER LH

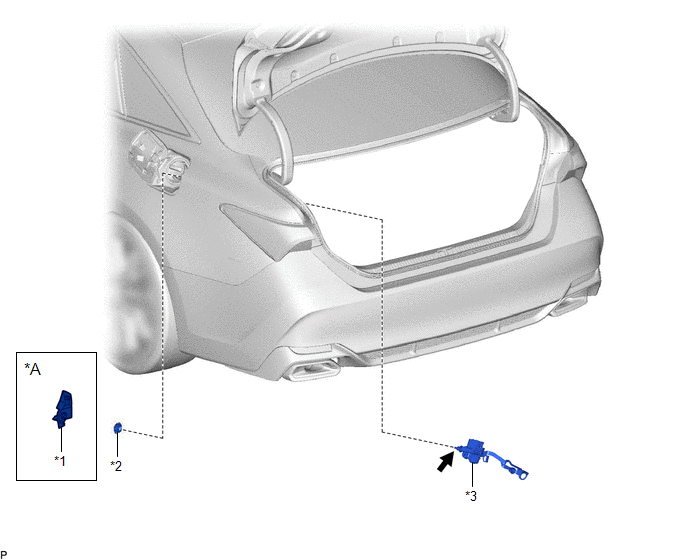

Fig 4: Fuel Lid Opener Motor Assembly Replacement Components (4 Of 4)

*A	w/ Cover	-	-
*1	FUEL FILLER OPENING LID LOCK COVER	*2	FUEL FILLER OPENING LID LOCK RETAINER
*3	FUEL LID LOCK WITH MOTOR ASSEMBLY	-	-
	MP grease	-	-
