On-Vehicle Inspection [04/2018 -]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

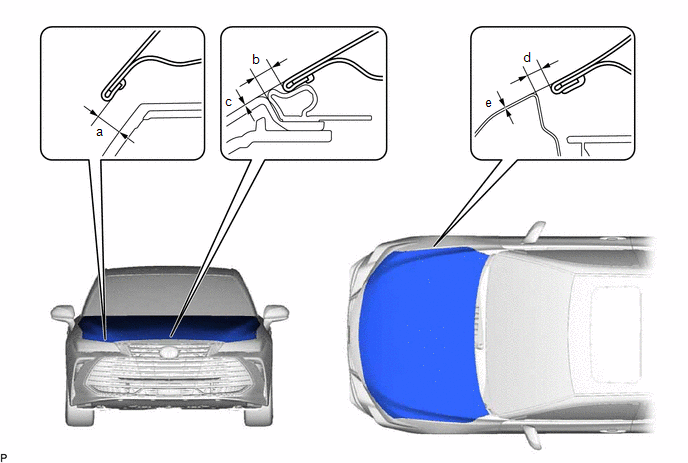

- Check that the clearance measurements of areas a through e are within each standard range.STANDARD CLEARANCE
Area Measurement Area Measurement a 5.15 to 9.15 mm (0.203 to 0.360 in.) b 2.75 to 6.75 mm (0.108 to 0.266 in.) c -1.85 to 2.15 mm (-0.0728 to 0.0846 in.) d 2.2 to 5.2 mm (0.0866 to 0.205 in.) e -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) - -
- Check that the clearance measurements of areas a through e are within each standard range.
