Removal [04/2018 -]: Procedure

  1. REMOVE HOOD SUPPORT ASSEMBLY
    NOTE:
    • Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.
    • Do not wear cotton gloves or other similar materials when handling the piston rod. Fibers may attach to the rod and result in gas leaks.
    • Do not apply any horizontal load to the hood support assembly in order to prevent the piston rod from deforming.

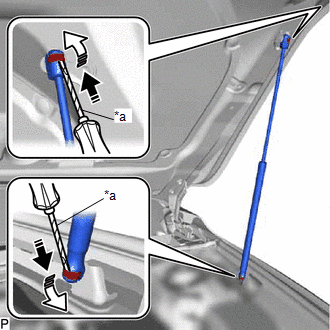

    1. Using a screwdriver with its tip wrapped with protective tape, slightly raise the 2 stop rings as shown in the illustration.
      GTY843961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:
      • Do not remove the stop rings from the hood support assembly. Raise the stop rings just enough to allow the ball joints to be disengaged.
      • Do not reuse the hood support assembly if a stop ring has been removed.
    2. Disengage the 2 ball joints to remove the hood support assembly.
      NOTE:

      Remove the hood support assembly while supporting the hood sub-assembly by hand.

  2. REMOVE HOOD STAY BRACKET

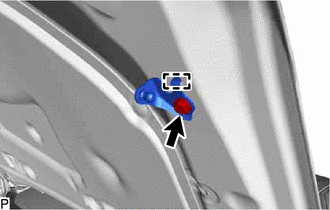

    1. Remove the bolt.
      GTY862750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the hood stay bracket.
  3. REMOVE FRONT FENDER UPPER PROTECTOR

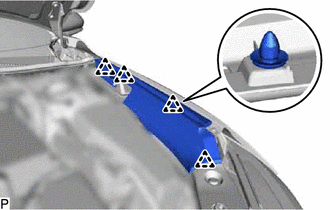

    1. Disengage the 4 clips to remove the front fender upper protector.
      GTY862803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HOOD SUPPORT BRACKET

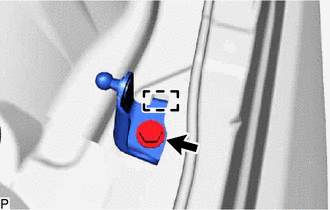

    1. Remove the bolt.
      GTY862802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the hood support bracket.
