Components [04/2018 -]

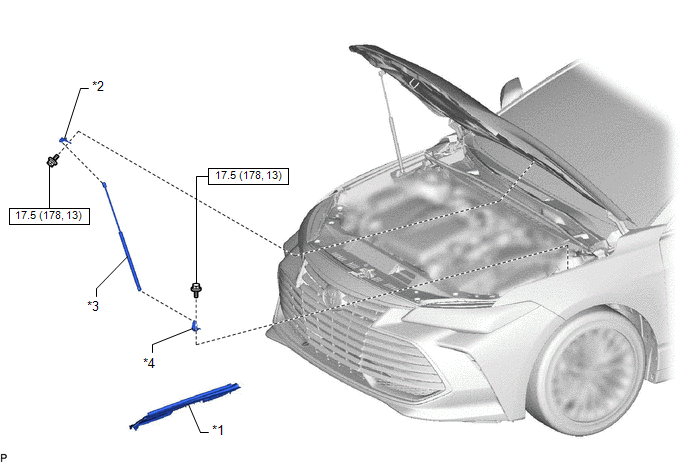

Fig 1: Hood Support Replacement Components With Torque Specifications
GTY915439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FENDER UPPER PROTECTOR *2 HOOD STAY BRACKET
*3 HOOD SUPPORT ASSEMBLY *4 HOOD SUPPORT BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -
