Adjustment [08/2020 -]: Procedure

INSPECT FRONT DOOR

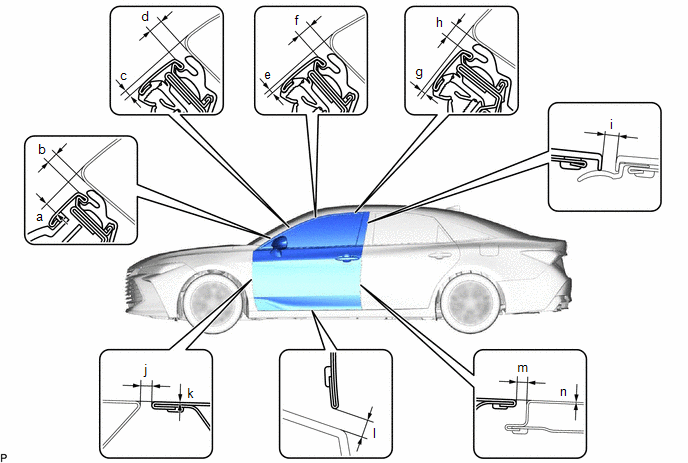

Check that the clearance measurements of areas a through n are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	3.25 to 7.25 mm (0.128 to 0.285 in.)	b	3.15 to 6.55 mm (0.124 to 0.258 in.)
c	0.65 to 4.65 mm (0.0256 to 0.183 in.)	d	3.25 to 6.65 mm (0.128 to 0.262 in.)
e	-0.35 to 3.65 mm (-0.0138 to 0.144 in.)	f	3.15 to 6.55 mm (0.124 to 0.258 in.)
g	-0.15 to 3.85 mm (-0.00591 to 0.152 in.)	h	3.15 to 6.55 mm (0.124 to 0.258 in.)
i	2.1 to 6.1 mm (0.0827 to 0.240 in.)	j	4.0 mm (0.157 in.)
k	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)	l	3.65 to 5.3 mm (0.144 to 0.209 in.)
m	2.8 to 5.2 mm (0.110 to 0.205 in.)		0 mm (0 in.)

ADJUST FRONT DOOR

NOTE:

Make sure to turn the engine switch (for Gasoline Model) or power switch (for HV Model) off before adjusting the door lock strikers.

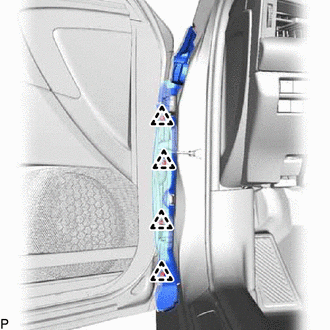

Remove the 4 clips and front fender seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

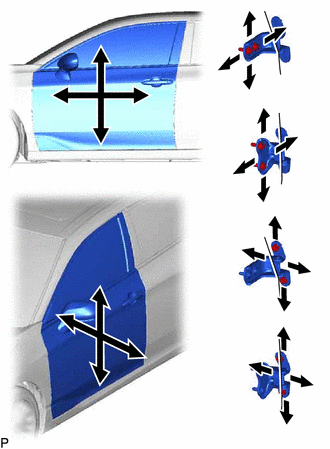

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

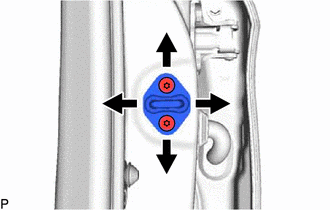

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
Install the front fender seal with the 4 clips.
