Front Door Opening Trim Weatherstrip
>>
Components [04/2018 -]
Components [04/2018 -]

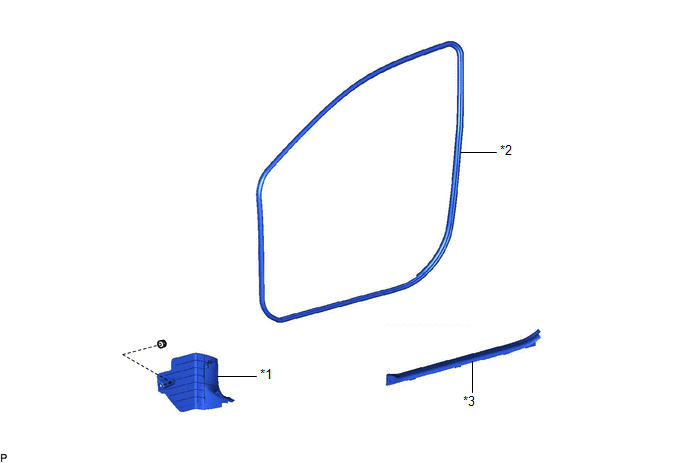

Fig 1: Front Door Opening Trim Weatherstrip Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COWL SIDE TRIM SUB-ASSEMBLY
*2
FRONT DOOR OPENING TRIM WEATHERSTRIP
*3
FRONT DOOR SCUFF PLATE
-
-
