Removal [04/2018 -]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
    1. Disconnect the connector.

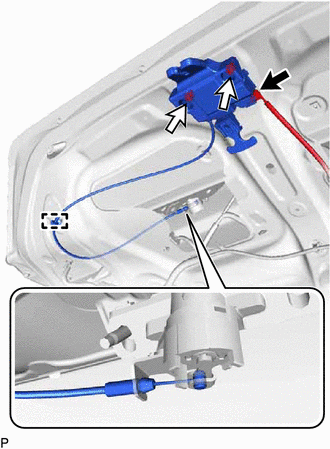

      GTY863235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disconnect the luggage door lock control cable sub-assembly from the luggage compartment door lock cylinder assembly.
    4. Remove the 2 bolts and luggage compartment door lock assembly.
  3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
    1. Disengage the claw as shown in the illustration.

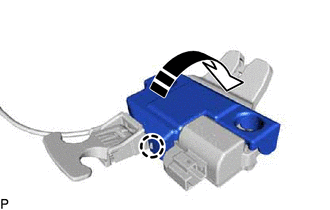

      GTY750940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 claws.

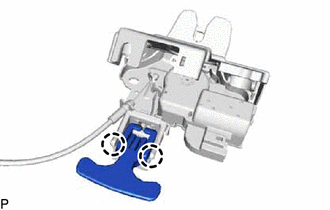

      GTY743369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the cable to remove the luggage compartment door inside handle.
  4. REMOVE LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Remove the luggage door lock control cable sub-assembly.

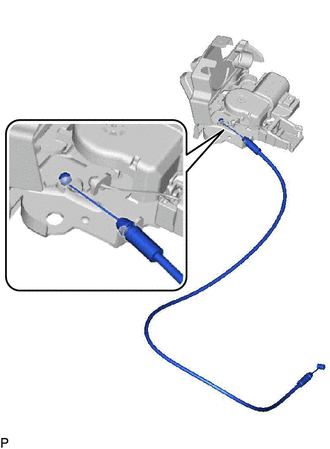

      GTY746212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
